PRIDE

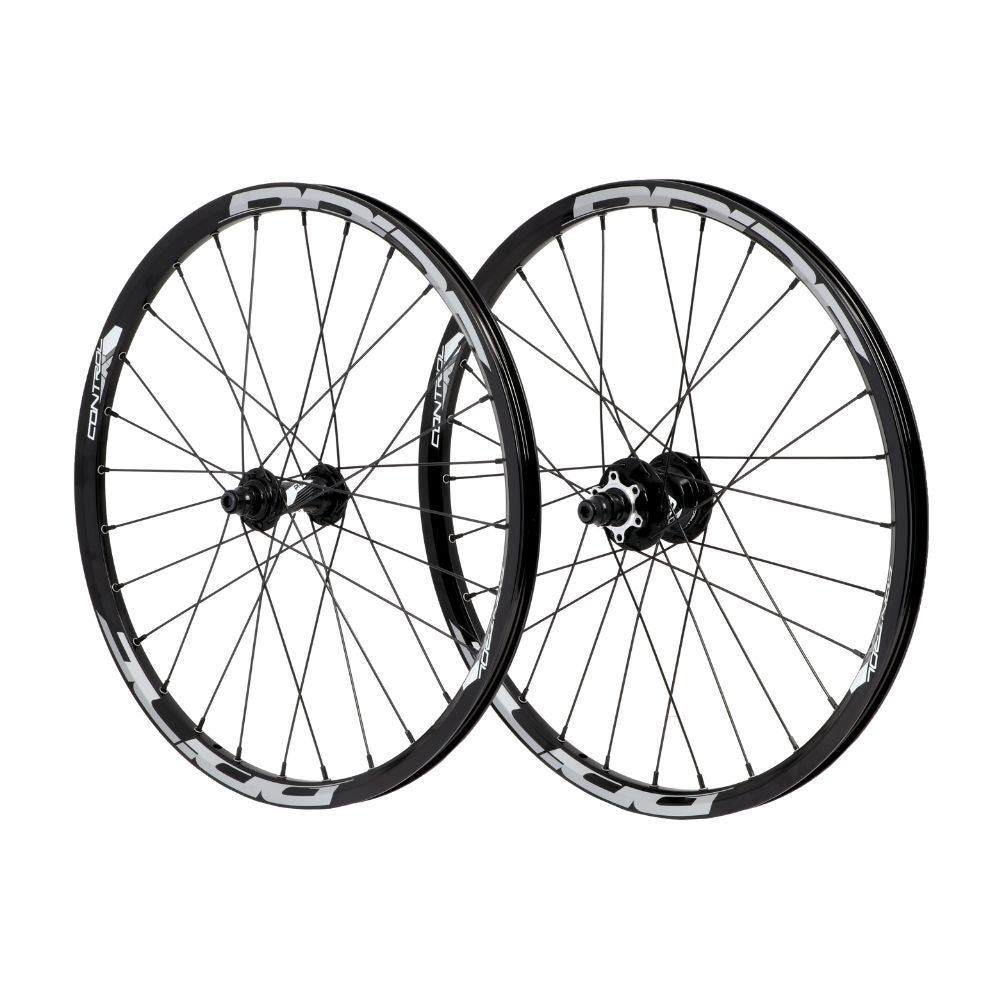

PRIDE 20" (451mm) Control V2 Disc Axes 10/10mm Black Wheel Set

The PRIDE 20" (451mm) Control V2 Disc Axes 10/10mm Black Wheel Set is developed for BMX Race and combines PRIDE Racing components designed to... Read more
4.209,00 DKK
4.209,00 DKK
View full details

Description

The PRIDE 20" (451mm) Control V2 Disc Axes 10/10mm Black Wheel Set is developed for BMX Race and combines PRIDE Racing components designed to offer an excellent balance between performance, stiffness and reliability. Equipped with Control Expert 6061-T6 aluminium rims, this wheel set benefits from a robust construction with T6 heat treatment to optimise strength while keeping weight under control.

The double-wall 20-inch rims in 451 (16-451) format deliver excellent efficiency during acceleration phases and technical sections. The Control V2 6061-T6 aluminium hubs feature a high-performance engagement system with 6 pawls and 180 engagement points, enabling rapid power transfer from sprints or race starts.

This wheel set features an ISO6 disc brake configuration with 10 mm axles front and rear, ensuring compatibility suited to BMX Race builds equipped with disc brakes. With its 28 spokes per wheel, black finish and performance-oriented build, the PRIDE Control V2 is a reliable choice for riders seeking a dynamic and effective wheel for competition.

Ref: 15986272108924

Technical information

Technical Specifications – Rims
Model: PRIDE Control Expert
Use: BMX Race
Diameter: 20 inches
Format: 451 mm
ETRTO Dimension: 16-451
Material: 6061-T6 Aluminium
Construction: Double wall
Rim height: 20 mm
Rim width: 23 mm
Number of spokes: 28
Brake compatibility: Disc only
Valve type: Presta
Tyre compatibility:
20 x 1-1/8"
20 x 1-3/8"
Sections from 20 to 34 mm

Technical Specifications – Front Hub
Model: PRIDE Control V2
Material: 6061-T6 Aluminium
Axle: 10 x 100 mm
Disc mount: ISO 6-bolt
Bearing: 15267
Number of holes: 28
Colour: Black

Technical Specifications – Rear Hub
Model: PRIDE Control V2
Material: 6061-T6 Aluminium
Axle: 10 x 110 mm
Freehub body standard: Shimano
Engagement system: 6 pawls
Engagement: 180 points
Disc mount: ISO 6-bolt
Bearing: 6902
Spacers and lockring included for chainline adjustment

General Specifications – Wheelset
Product: Front wheel + rear wheel pair
Colour: Black
Main material: Aluminium
Brake type: Disc
Rim tape: Not included
Use: BMX Race competition

Pair weight: 1730 g
Front wheel weight: 778 g
Rear wheel weight: 952 g
;
