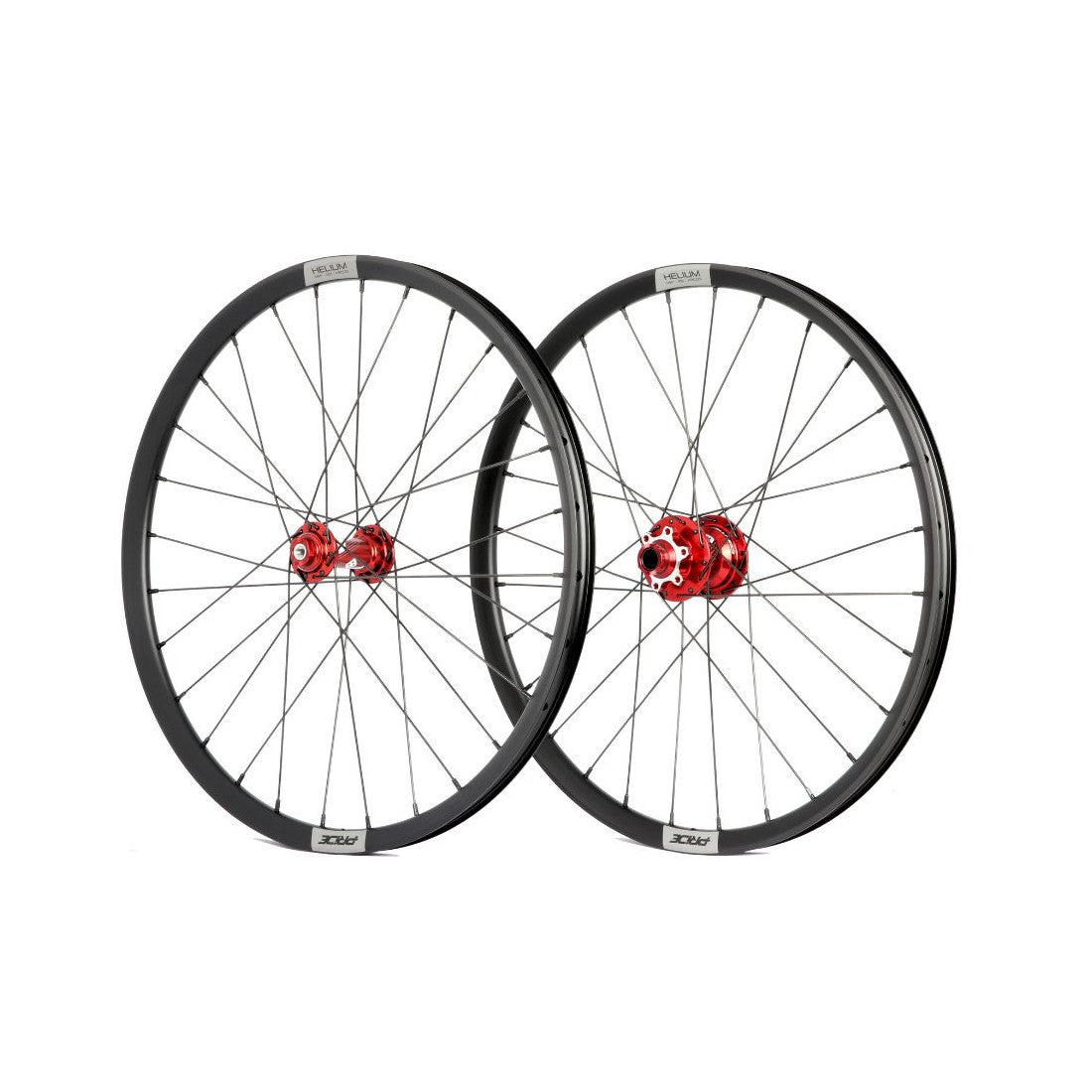

PRIDE 20" (451mm) Control V2 Disc Helium M21 10/15mm Axle Wheel Set Red

The PRIDE Control V2 Disc Helium M21 Wheel Set is developed for BMX Race bikes with 20-inch 451 mm wheels seeking a high-performance, lightweight... Read more
Regular price 4.629,00 DKK
Regular price Sale price 4.629,00 DKK
View full details

Description

The PRIDE Control V2 Disc Helium M21 Wheel Set is developed for BMX Race bikes with 20-inch 451 mm wheels seeking a high-performance, lightweight and reliable wheelset. It combines Helium 6069-T6 aluminium rims with CNC-machined Control V2 hubs, offering an excellent balance between stiffness, responsiveness and durability.

The rim benefits from the Arcos System® process, enabling precise internal design and optimisation of the aluminium's mechanical properties. Its low-profile 19 mm depth promotes rapid acceleration, excellent manoeuvrability and immediate response during race phases.

The Pride Racing Control V2 hubs in 6061-T6 aluminium feature high-flange designs to improve wheel stiffness. The rear system with 7075-T6 aluminium driver and 6 micro-toothed pawls delivers 180 engagement points for fast and efficient power pick-up.

The ISO6 disc mount ensures compatibility with suitable braking systems, while the 10x100 mm front axle and 15x110 mm rear axle provide a robust and precise fit. The blue finish also gives the wheelset a distinctive visual identity.

With a contained weight of 1458 g per pair, this setup combines lightness, dynamism and reliability for riders seeking high-performance BMX Race wheels. The 28 spokes per wheel reinforce the solidity required for the demands of competition.

Ref: 15986271715708

Technical information

General information
Product: BMX Race wheelset
Model: PRIDE Control V2 Disc Helium M21
Diameter: 20" (451 mm)
Use: BMX Race competition
Braking type: Disc only
Main material: Aluminium
Total pair weight: 1458 g

Rim specifications
Model: Pride Helium Expert
Material: 6069-T6 Aluminium
Construction: Double wall
Technology: Arcos System®
Rim height: 19 mm
Rim width: 25 mm
Spoke count: 28
Valve type: Presta
Tyre compatibility: 20 to 34 mm
Compatible tyre sizes:
20 x 1-1/8"
20 x 1-3/8"
V-Brake compatibility: No

Front hub
Model: Pride Control V2
Material: 6061-T6 Aluminium
Manufacturing: CNC machining
Spacing: 10 x 100 mm
Hole count: 28
Bearing: 15267
Disc mount: ISO6

Rear hub
Model: Pride Control V2
Material: 6061-T6 Aluminium
Spacing: 15 x 110 mm
Thru-axle: 15 mm (not included)
Hole count: 28
Driver standard: Shimano
Driver: 7075-T6 Aluminium
Engagement system:
6 micro-toothed pawls
Engagement by 3 simultaneous pawls
180 engagement points
Disc mount: ISO6
Bearing: 6902

Detailed weights
Front wheel: 615 g
Rear wheel: 843 g
Complete pair: 1458 g

Additional information
Lock ring and spacers included for rear chainline adjustment
Rim tape not included
Rear 15 mm thru-axle not included (frame-specific)
