ALUGEAR Cover for Shimano R8100 Crankset

The ALUGEAR AERO Cover is designed for ALUGEAR 1X and 2X chainrings used with Shimano Ultegra R8100 12-speed cranksets. Its design conceals the junction... Read more
611,00 DKK
611,00 DKK
View full details

Description

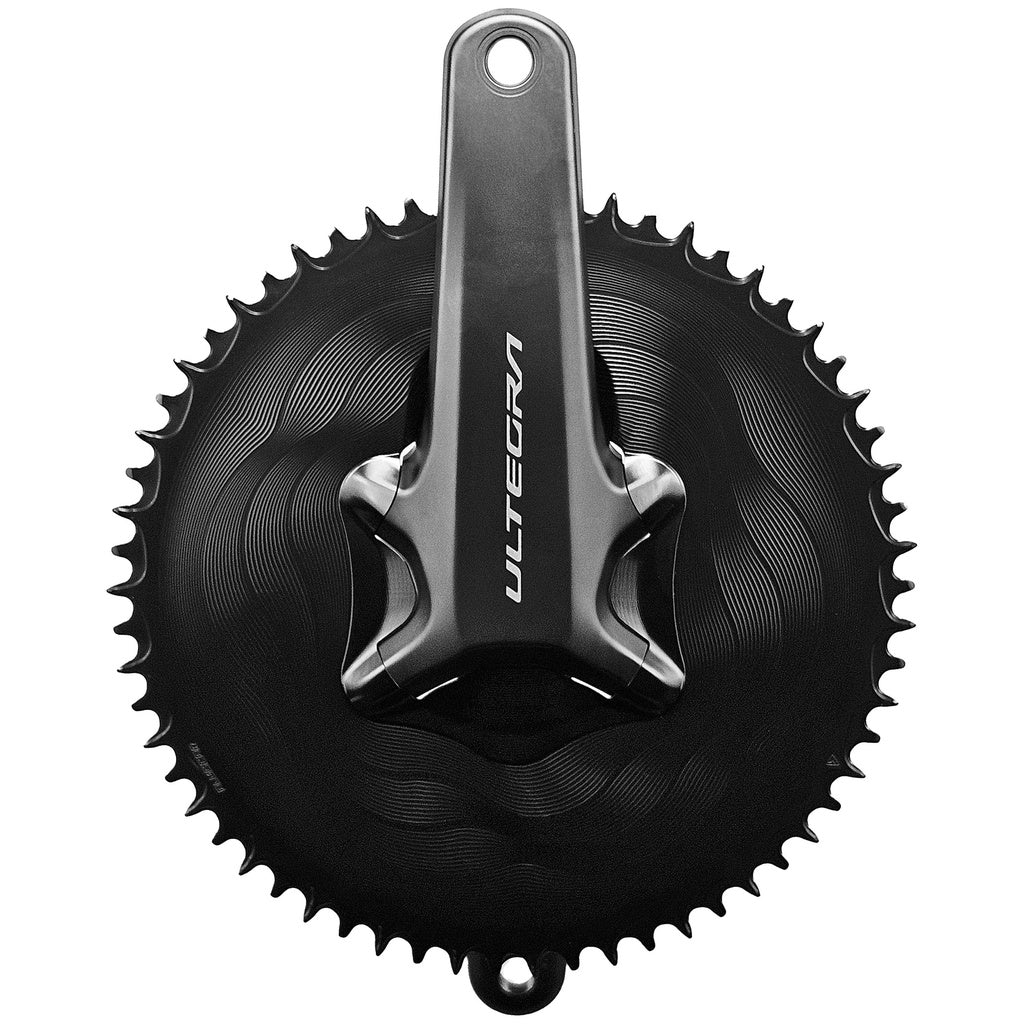

The ALUGEAR AERO Cover is designed for ALUGEAR 1X and 2X chainrings used with Shimano Ultegra R8100 12-speed cranksets. Its design conceals the junction between the chainring and the crank arm to achieve a more uniform and refined finish.

Made from 7075-T6 aluminium, this cover benefits from CNC machining and an anodised finish. Weighing just 17 g for the cover, it offers a lightweight solution while maintaining a design specifically adapted for the Shimano Ultegra R8100 crankset.

The system uses a 110 mm asymmetric Shimano chainline and a 4-arm spider attachment. Available in several anodised colours, it can be easily removed and refitted. It comes with 4 ALUGEAR M8 11.5 mm bolts and their spacers.

Ref: 16068016243068

Technical information

Design: AERO
Type: Road / Gravel
Use: ALUGEAR 1X and 2X chainrings
Crankset compatibility: Shimano Ultegra R8100 12-speed
Bolt configuration: 4-arm
Bolt circle diameter (BCD): 110 mm Shimano asymmetric
Material: Aluminium 7075-T6
Manufacturing: CNC machining
Finish: Anodising
Cover weight: 17 g
Bolt weight: 8 g
Bolts included: 4 × M8, length 11.5 mm
Fitting tool: 5 mm hex key
Maximum tightening torque: 10 Nm
Available colours: Black, silver, red, blue, orange, green, gold, purple, steel and mocha
Compatibility: Shimano Ultegra R8100 cranksets with ALUGEAR 1X or 2X chainrings
Incompatibility: Shimano R8100 cranksets fitted with the original integrated power meter
Special feature: Conceals the junction between the chainring and the crank arm
Installation: Use exclusively original ALUGEAR bolts

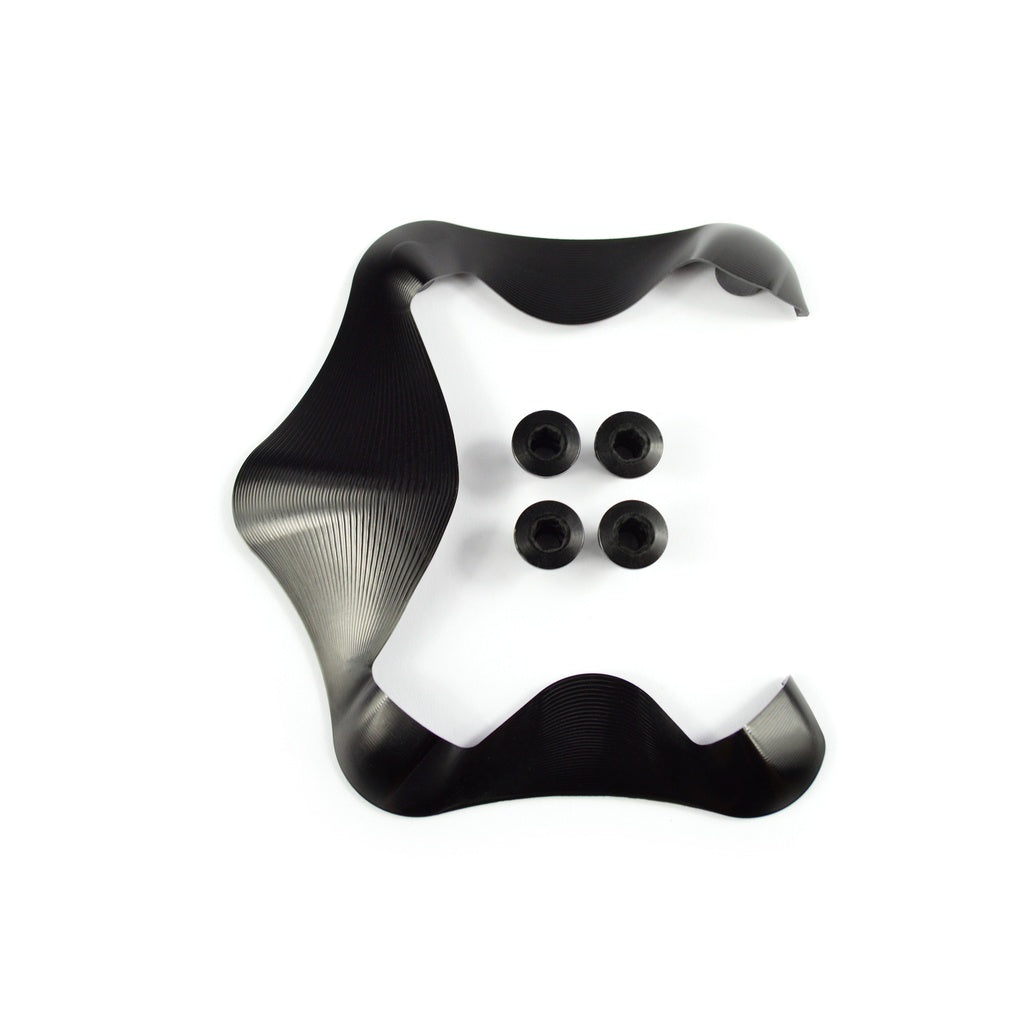

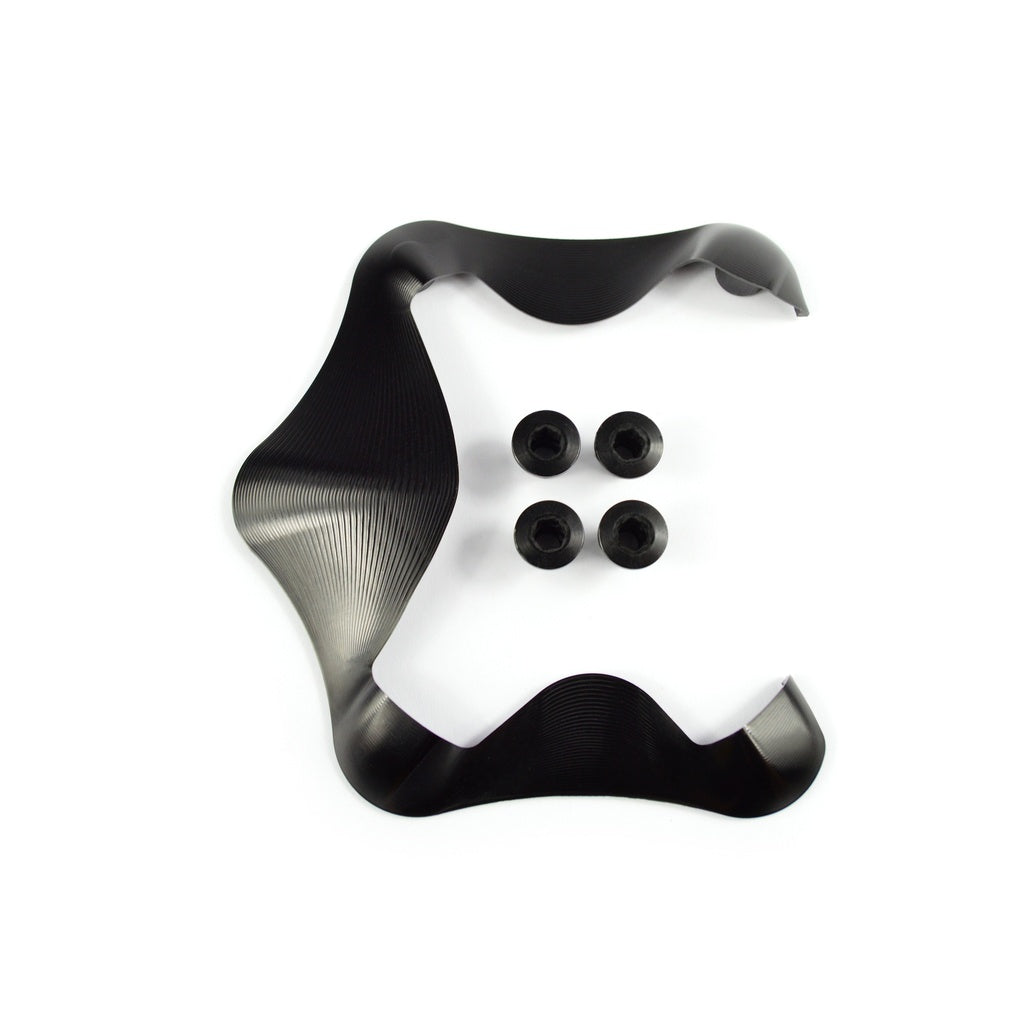

Contents: 1 × AERO cover + 4 × M8 bolts 11.5 mm with spacers
;
