FOX RACING SHOX

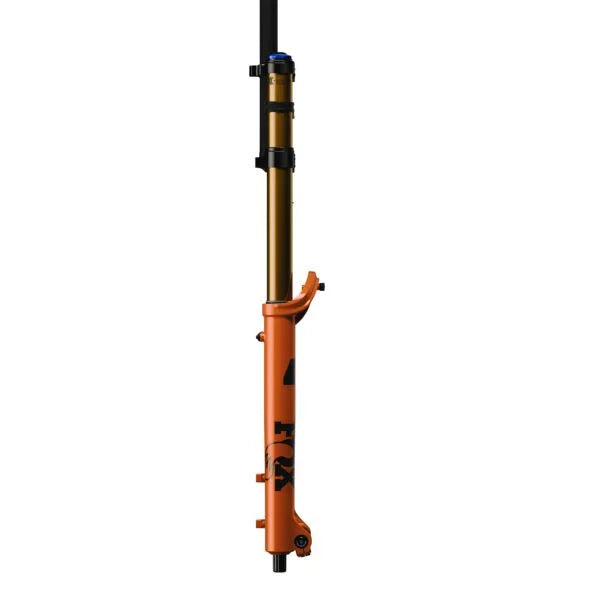

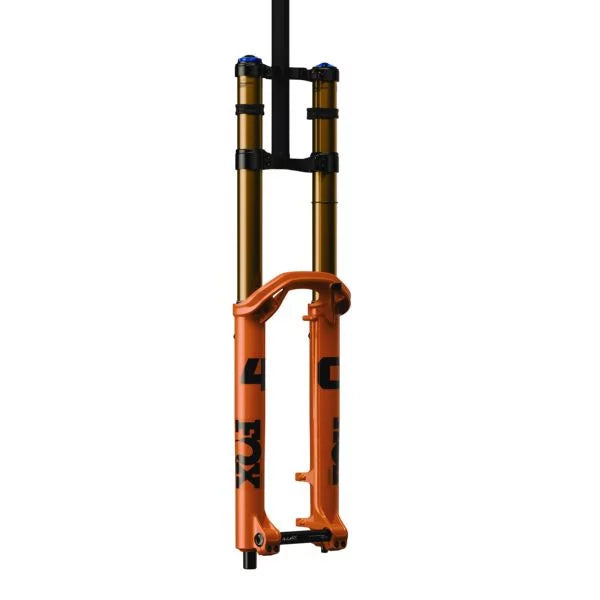

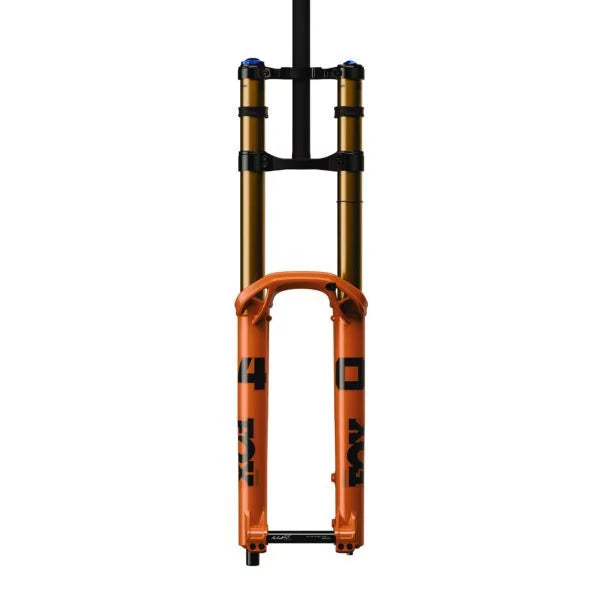

FOX 40 FACTORY 29" Grip X2 Fork Orange 2027

The FOX 40 FACTORY 29" Grip X2 Fork embodies the highest level of downhill performance, designed for DH competition and extreme enduro. It combines... Read more
16.760,00 DKK
16.760,00 DKK
View full details

Description

The FOX 40 FACTORY 29" Grip X2 Fork embodies the highest level of downhill performance, designed for DH competition and extreme enduro. It combines a fully optimised chassis and cutting-edge hydraulics to deliver maximum control, great precision and consistent stability on the most demanding terrain. The use of Generative Design allows for a structure that is stiffer in torsion and better suited to the demands of 29" wheels, boosting confidence when riding at high speed.

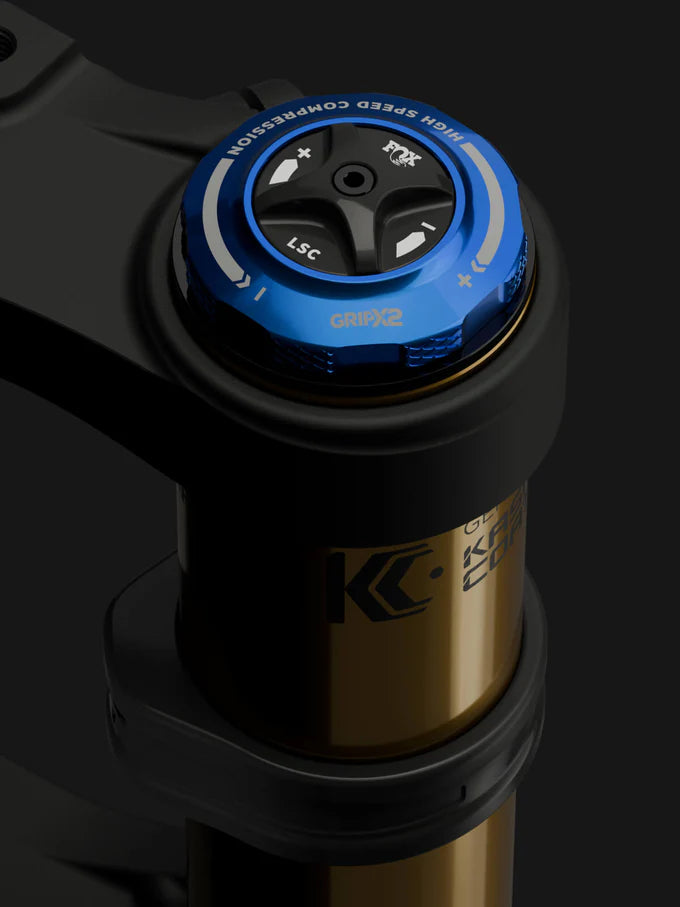

The GRIP X2 cartridge, replacing the Grip 2, is a major evolution. It offers ultra-precise 4-way high and low-speed compression and rebound adjustments, providing an unprecedented level of personalisation. With an increase in base valve diameter to 24 mm, it delivers superior support and increased sensitivity. Riders sit higher in the travel whilst keeping their tyres planted on the ground, improving cornering grip, traction and fatigue reduction over long distances.

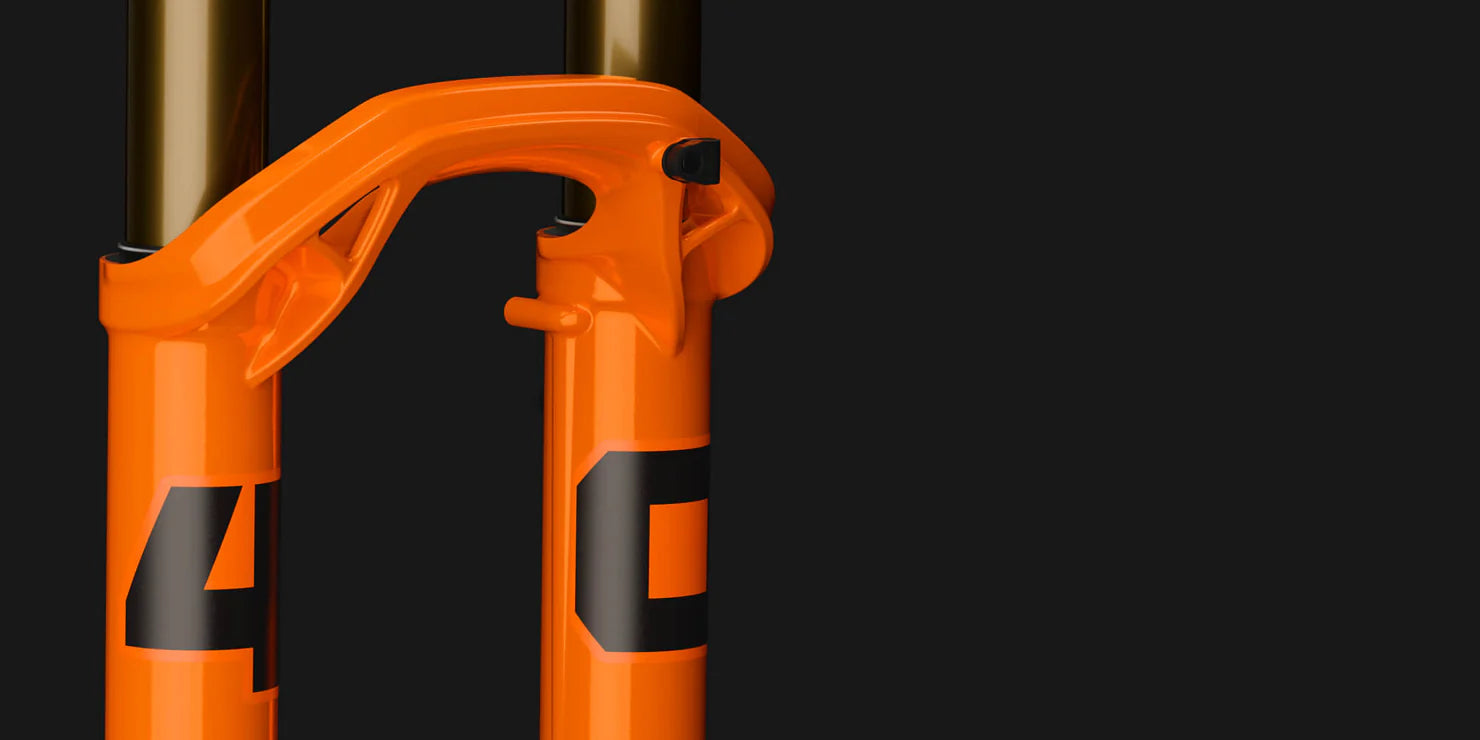

The chassis incorporates Air Channels that increase the volume of the fork legs to limit pressure build-up and improve absorption of small impacts. The tool-free bleeders make pressure equalisation easy to maintain consistent performance. The 20 mm floating axle system ensures perfect alignment between the stanchions, reducing friction and improving overall sensitivity.

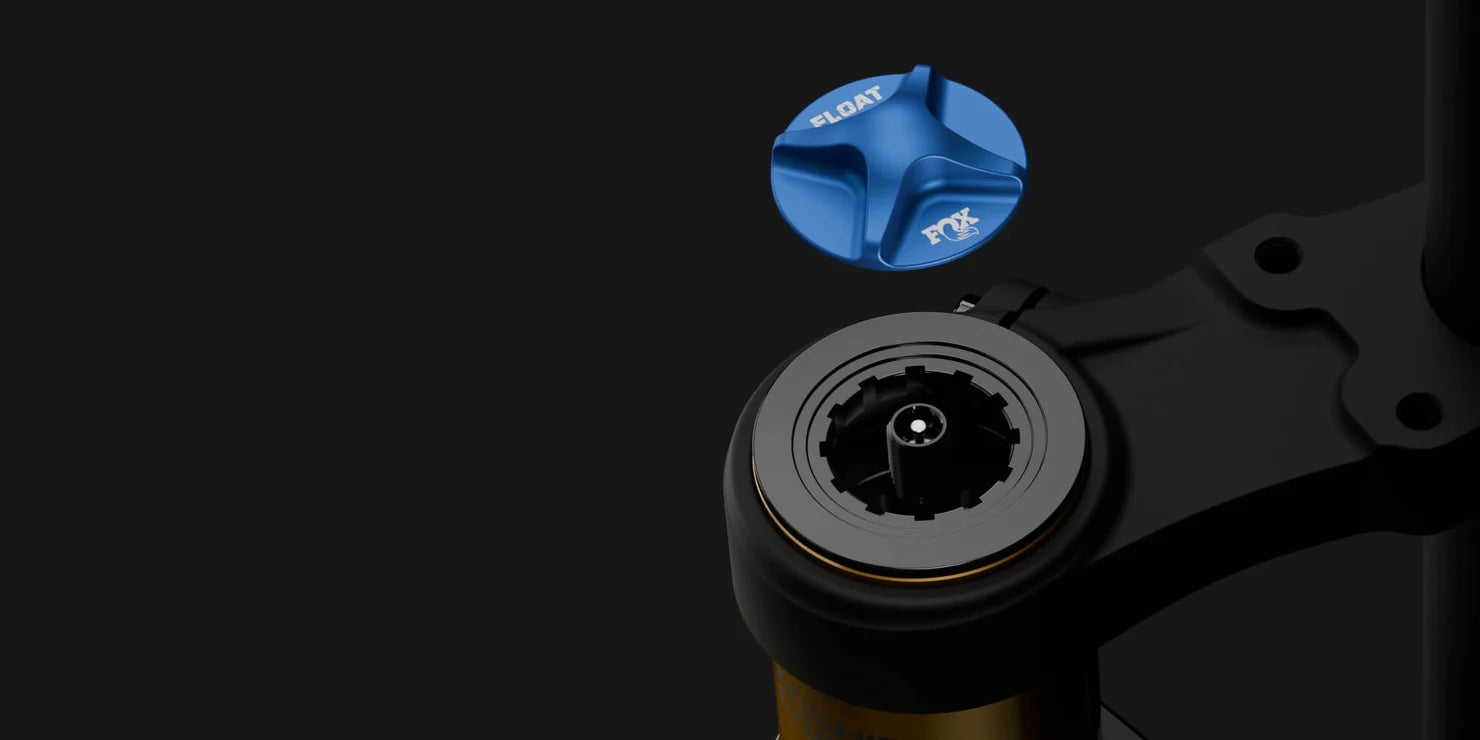

Finally, the Factory version benefits from the Kashima Coat treatment, guaranteeing exceptional smoothness and reduced friction. Combined with the GlideCore air spring with increased negative volume and MCU bump stop, the fork gains in responsiveness and comfort. The result is an ultra-smooth, precise and high-performing suspension, built to push the limits on descents and in competition.

Ref: 15941154406780

Informations techniques

Generative Design Frame
Spring: Air Float Evol Glidecore / Hydraulic: Grip X2 Cartridge - HSC, LSC, HSR, LSR Settings:
High-speed rebound: 8 clicks;
Low-speed rebound: 16 clicks;
High-speed compression: 8 clicks;
Low-speed compression: 18 clicks;
23 internal valves (instead of 7 on the Grip2);
Increase in base valve diameter to 24 mm (20 mm on the Grip2);
Axle 20x110 mm (Black);
Stanchions: 40 mm
with Kashima coating;
Offset: 52 mm;
Bleeders and Air Channels;
Steerer 1''1/8;
Steerer length: 272 mm;
Axle/Crown height: 601 mm (203 mm);
Postmount 203 mm brake mount (max 230 mm);
Included: star nut, 3 Tokens, hose guide;
Max tyre width: 2.5";
Compatible with specific 4-point mudguard (optional)

Manufacturer reference: 910-21-409
Weight (manufacturer): 2745 g.

;
