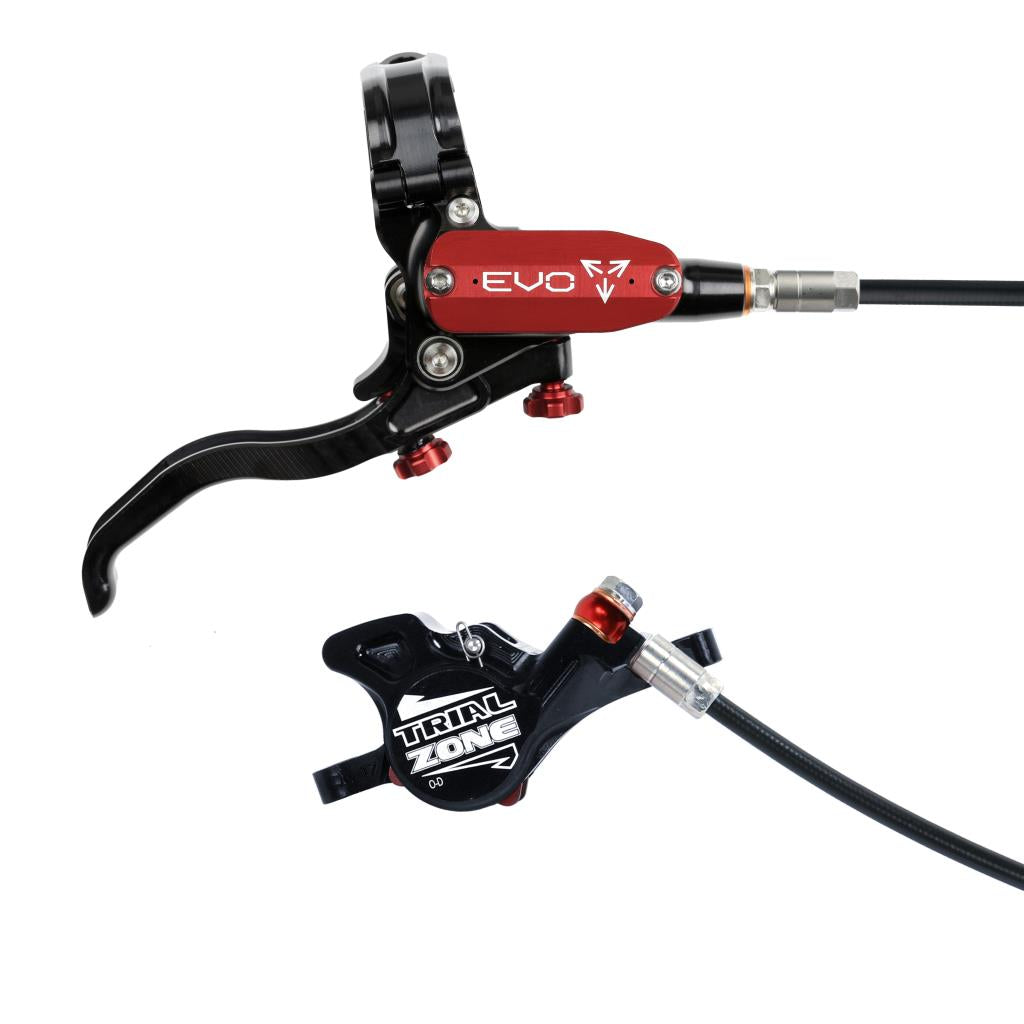

HOPE TECH 4 EVO TRIAL ZONE N9 rear brake Red

Réf. fabricant : T4ETZRR9R
The HOPE TECH 4 EVO TRIAL ZONE brake is designed to offer absolute control and maximum power to the most demanding trials riders. Its... Read more
2.356,00 DKK
2.356,00 DKK
View full details

Description

The HOPE TECH 4 EVO TRIAL ZONE brake is designed to offer absolute control and maximum power to the most demanding trials riders. Its TECH 4 EVO master cylinder combined with the Trial Zone caliper guarantees ultra-precise response and consistent reliability, even during the most aggressive maneuvers.

The TECH 4 EVO master cylinder benefits from significant improvements: new piston, floating head, optimized cam, second guide ring and three new levers. These evolutions offer fluid, customizable control of braking power. The lever pivot rests on two annular bearings, ensuring a smooth, constant action, while the adjustment knobs allow fine-tuning of guard and attack to the rider's preferences.

The 25 mm aluminum pistons and monobloc caliper design provide rigidity and power while maintaining excellent steering finesse.

Compatible with specific 160 to 203 mm discs and matchmakers (Sram or Shimano, not supplied), this brake adapts to all configurations. With its exceptional performance and 5 mm black hose for maximum strength, the HOPE TECH 4 TRIAL ZONE No 9 is the ultimate weapon for trials and technical riding.

Technical manual.

Ref: 15478141190524

Informations techniques

TECH 4 EVO master cylinder :
Fully machined from a 2014 T6 aluminum block.
New piston and floating piston head.
New cam and 2ᵉ guide ring.
3 new levers for more precise, customizable control (standard and Control or Power as options).
Lever pivot mounted on 2 ring bearings → smooth, long-lasting action.
Attack and guard adjustment knobs for fast, precise adjustment.
Natural braking feel, controlled power and optimum reliability.

Trial Zone stirrup
Standard Post-Mount, 74.2mm center distance
2 guide rings keep the piston perfectly smooth and straight
One-piece caliper design for best ratio
stiffness/weight
Two huge 25-mm aluminum pistons deliver high power and rigidity

Hose :
Diameter: 5 mm.
Length: 2 m.

Compatibility & Options :
14 color combinations available.
Compatible matchmakers :
HBSP426
HBSP441
HBSP431
Sram, Sram T-Type, Shimano I-Spec II & EV.

Important note:
Works only with DOT 4.0 or DOT 5.0 fluid.
;

Informations prix

*Supplier suggested retail price in September 2025
