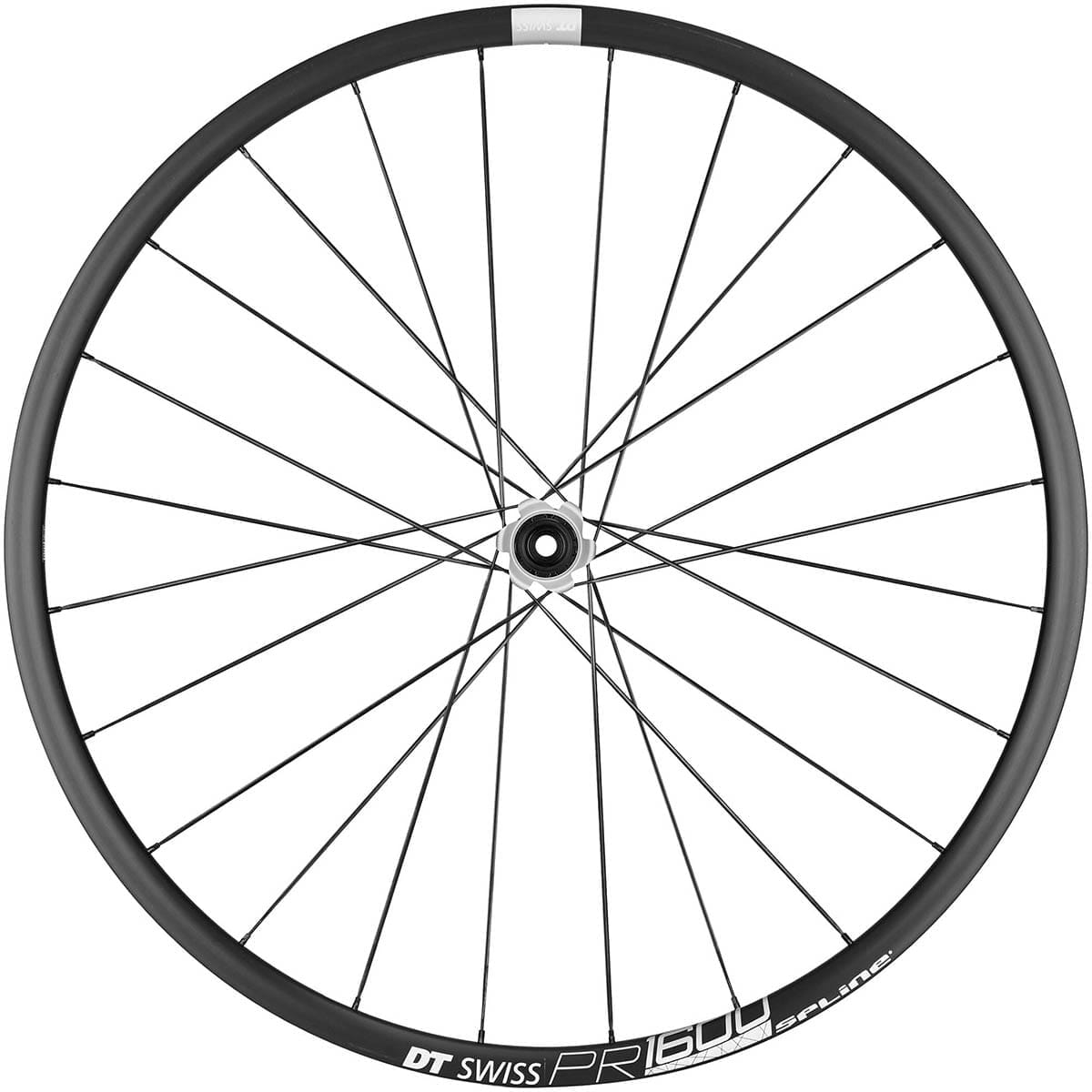

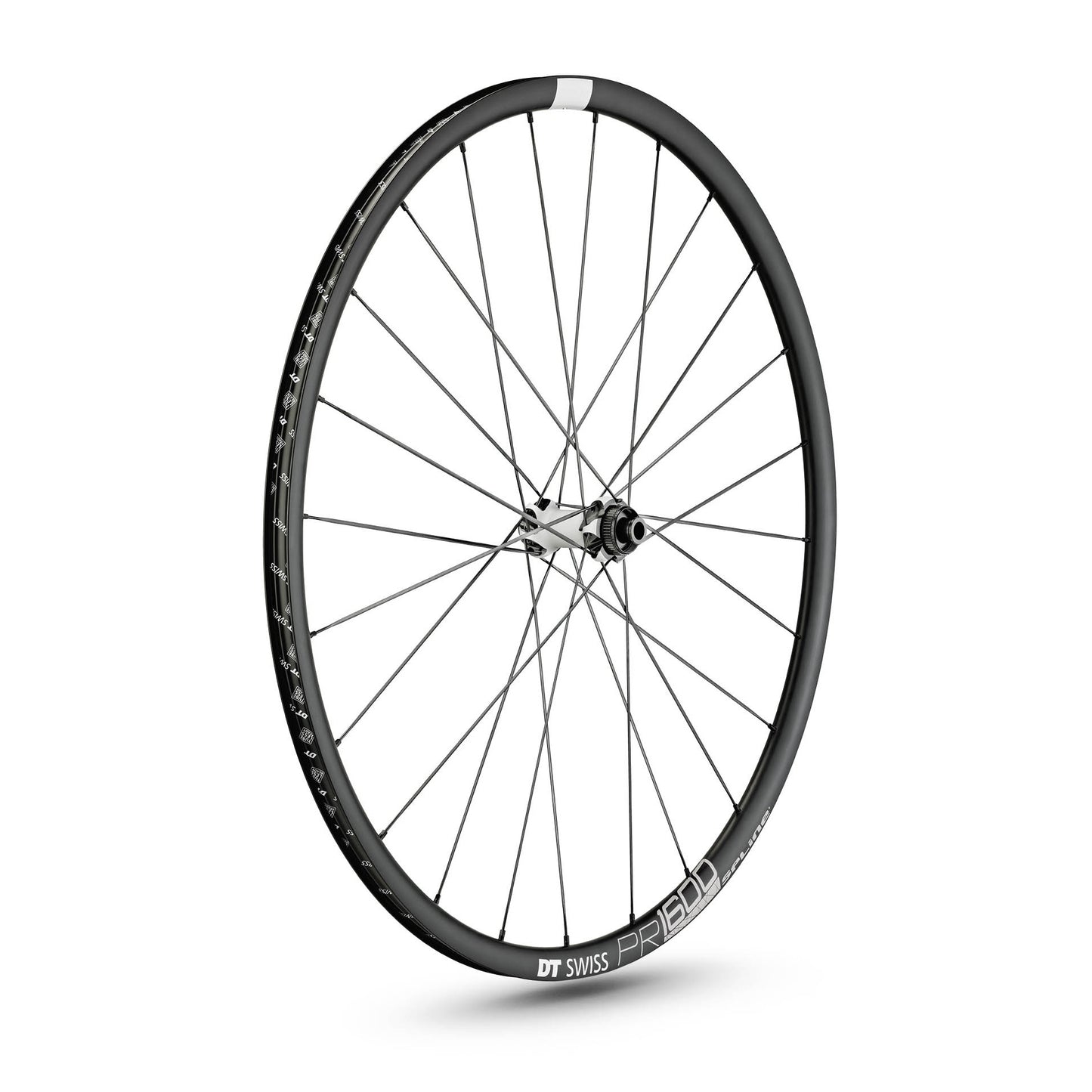

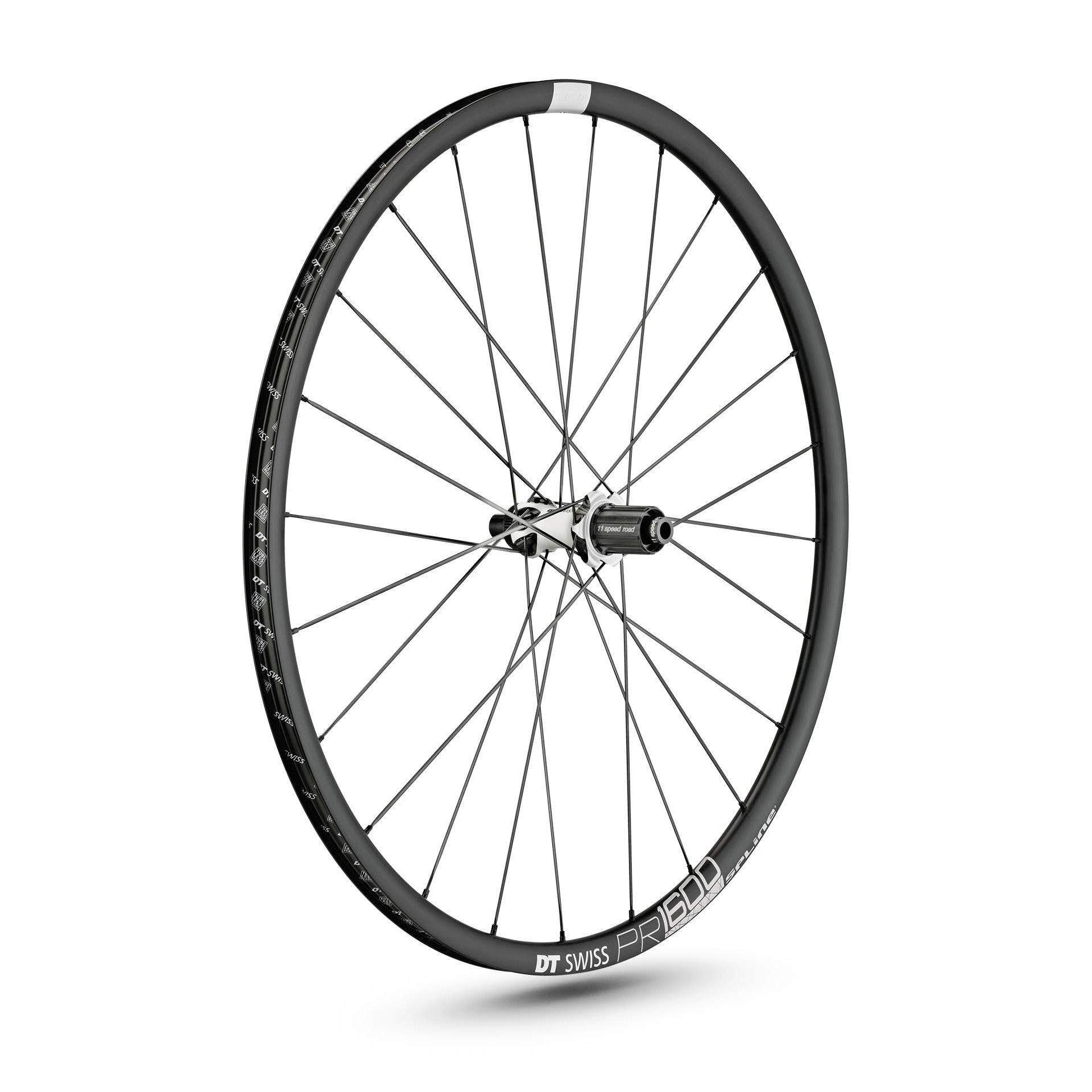

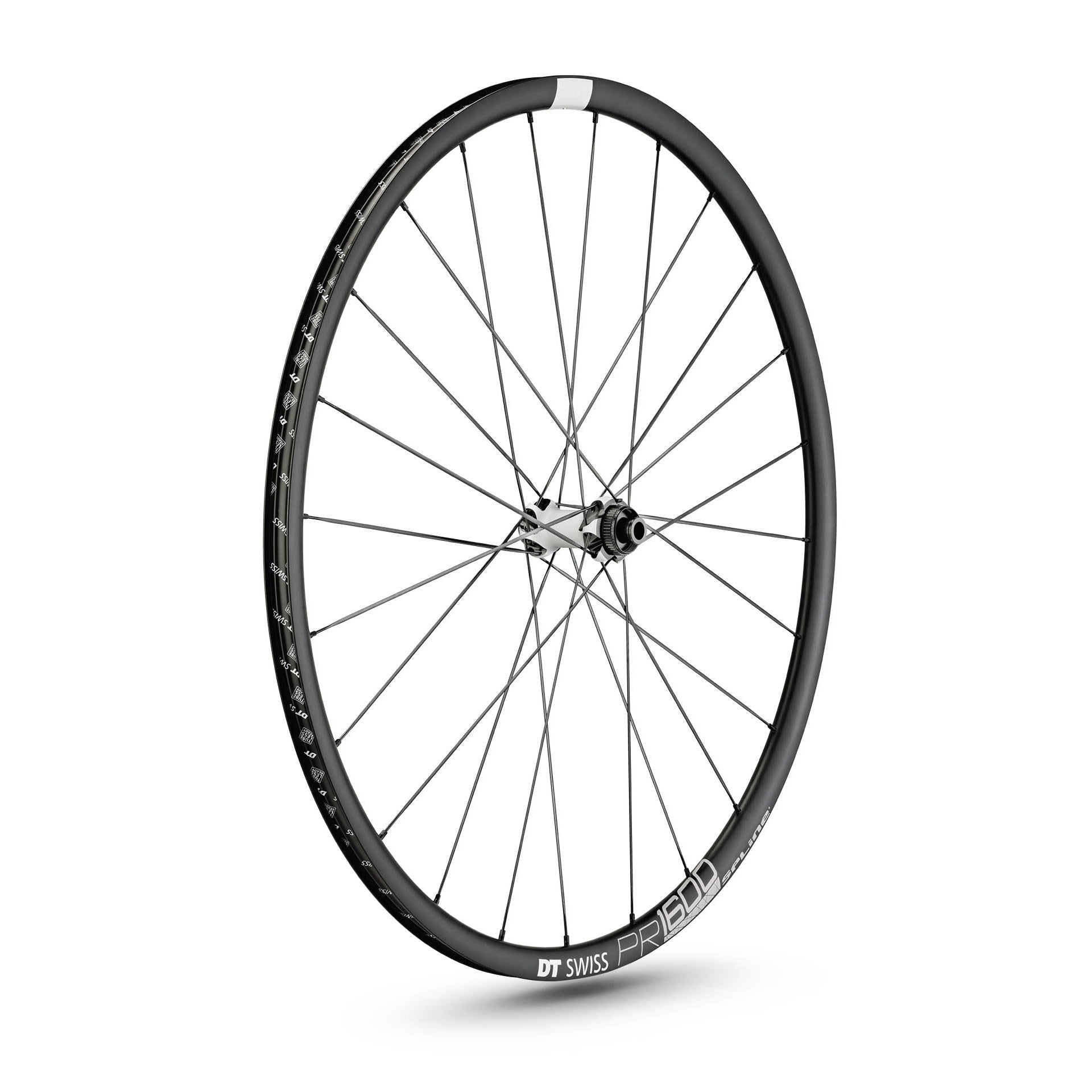

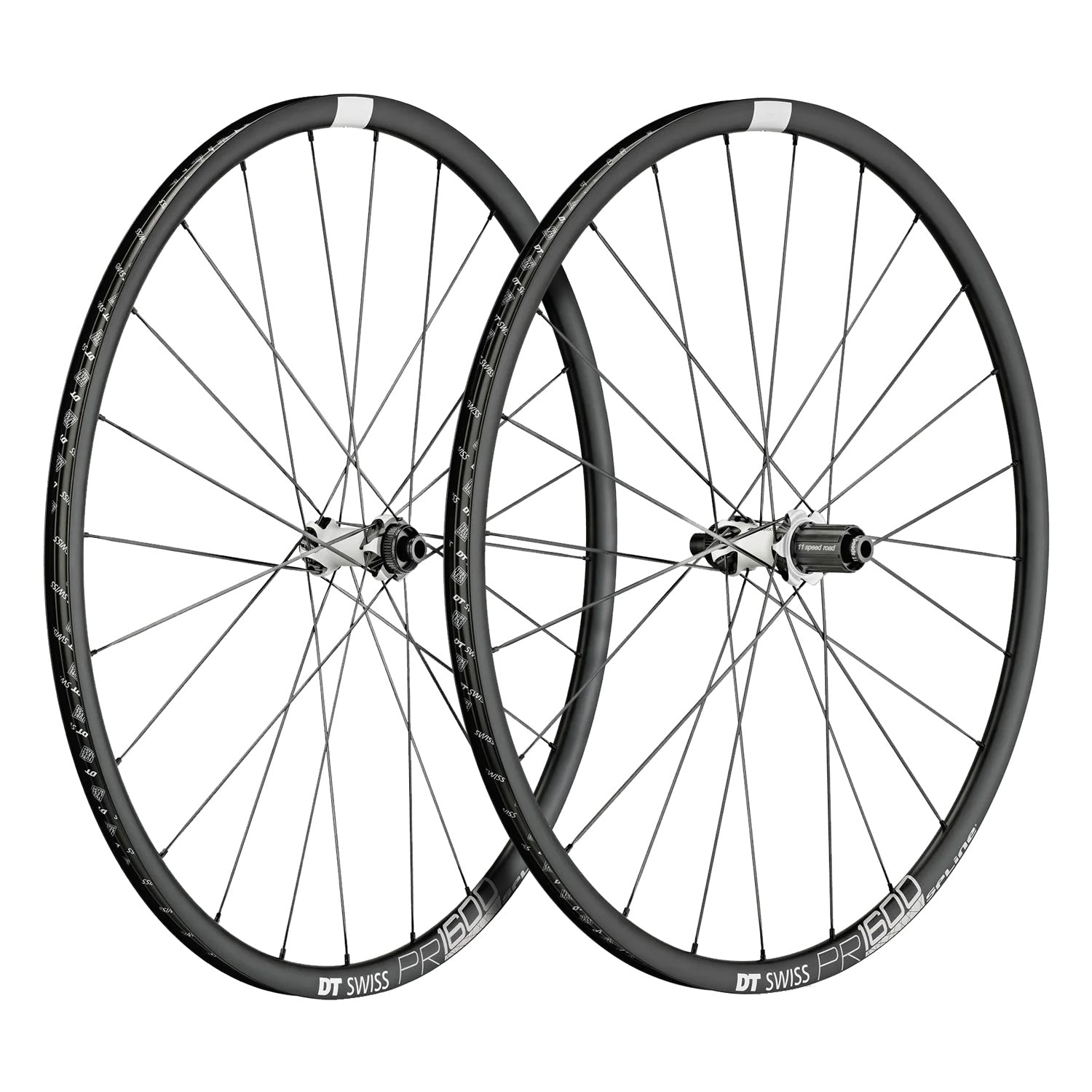

DT SWISS PR 1600 SPLINE 23 DISC Tubeless Ready Wheelset (Center Lock)

The DT SWISS PR 1600 SPLINE 23 DISC wheelset is the perfect option for cyclists looking for performance at an affordable price. Its 23... Read more
3.114,00 DKK
3.787,00 DKK 3.114,00 DKK
-20%
View full details

Description

The DT SWISS PR 1600 SPLINE 23 DISC wheelset is the perfect option for cyclists looking for performance at an affordable price.

Its 23 mm rim, suited to wider tyres, offers an excellent balance between comfort, grip and speed, even on less smooth surfaces. Fitted with 350 hubs, it guarantees efficiency and reliability, while featuring Ratchet technology for fast and precise engagement, perfect for accelerations on varied terrain. The flat-section spokes ensure optimal lateral stiffness for improved power transfer.

Designed for climbing, the PR 1600 SPLINE is particularly efficient on ascents thanks to its lightweight low-profile rim, while its 20 mm width stabilises the tyre for better grip on descents.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Assembly Manual

Ref: 15041685389692

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 896g rear and 750g front
Max Load: 120 kg
ASTM Classification: 1
E-Bikes Recommended: No
Manufacturer Reference: WPR1600NIDMSA04446 and WPR1600AIDXSA04444

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 23mm
Internal Width: 18mm
External Width: 22mm

┘HUBS
Axle System: 12mm Thru axle
Spacing: 142mm and 100mm
Disc Mounting: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet System 18
Hub Type: 350

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® wide straightp
Right spokes: DT new aero® straightpull
Lacing Type: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► PERFORMANCE RANGE: The DT Swiss Performance range offers aluminium wheels combining reliability, comfort and performance at an affordable price. Ideal for cyclists seeking quality and efficiency, they guarantee robustness and responsiveness;
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;

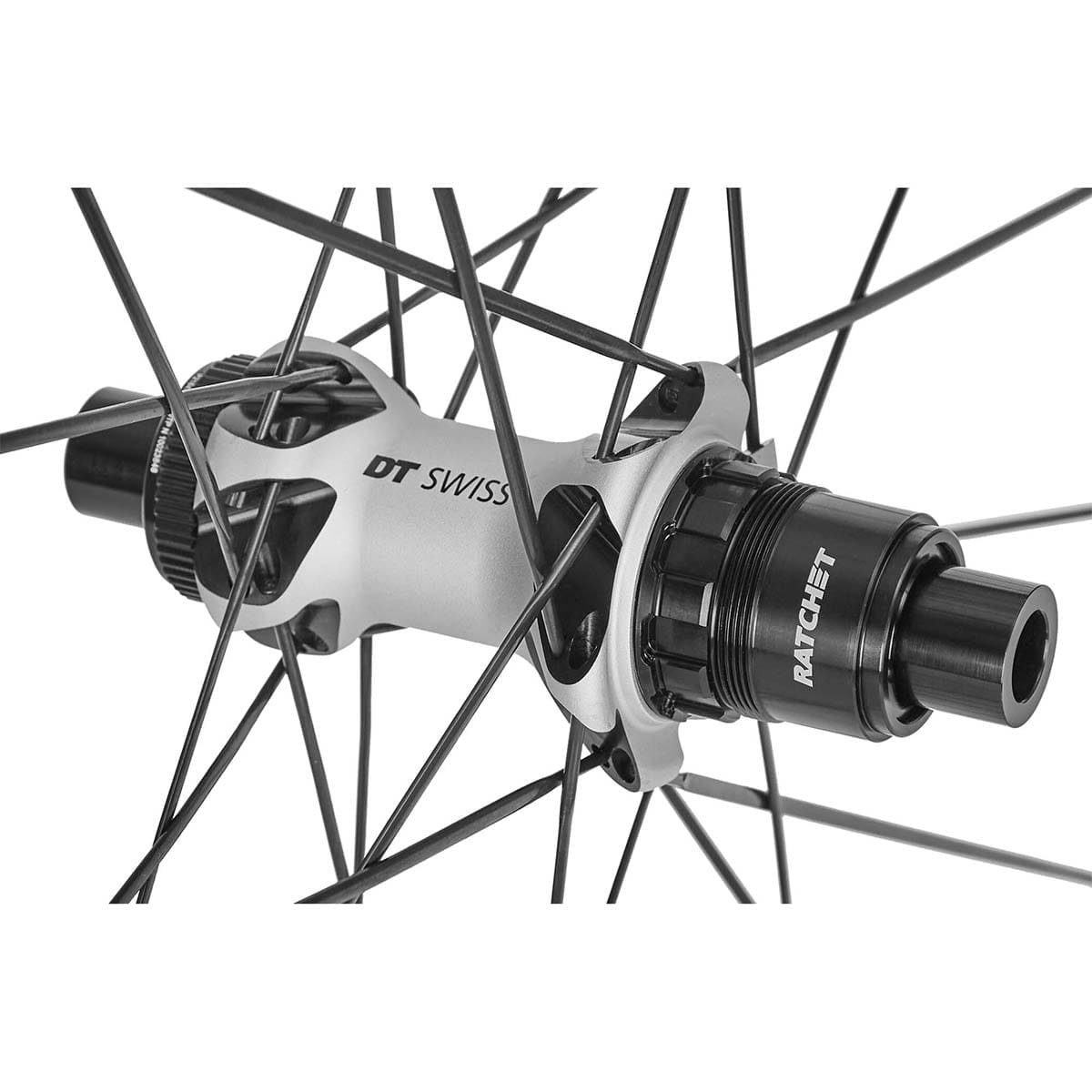

► RATCHET: DT Swiss Ratchet freehub body technology ensures fast and precise engagement thanks to its high-precision ratchet ring system. It guarantees efficient power transmission, high reliability and minimal maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: Tubeless roll 21mm
Valve: Road tubeless valve 32mm

┘CONVERSION REFERENCES
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR Kit: HWYABX00S8883S;
► XDR / 12x142 Kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 Kit: HWYABL00S1961S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2992S;
► Campagnolo / QR Kit: HWYABX00S1296S;
► Campagnolo / 12x142 Kit: HWYABX00S7154S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;
