SHIMANO MT420 4 Piston J-KIT Brake Set Without Disc

The SHIMANO MT420 Brake Set is designed to deliver consistent braking performance and reliable stopping power in all conditions. The BR-MT420 calliper, with its... Read more
1.262,00 DKK
1.364,00 DKK 1.262,00 DKK
-10%
View full details

Description

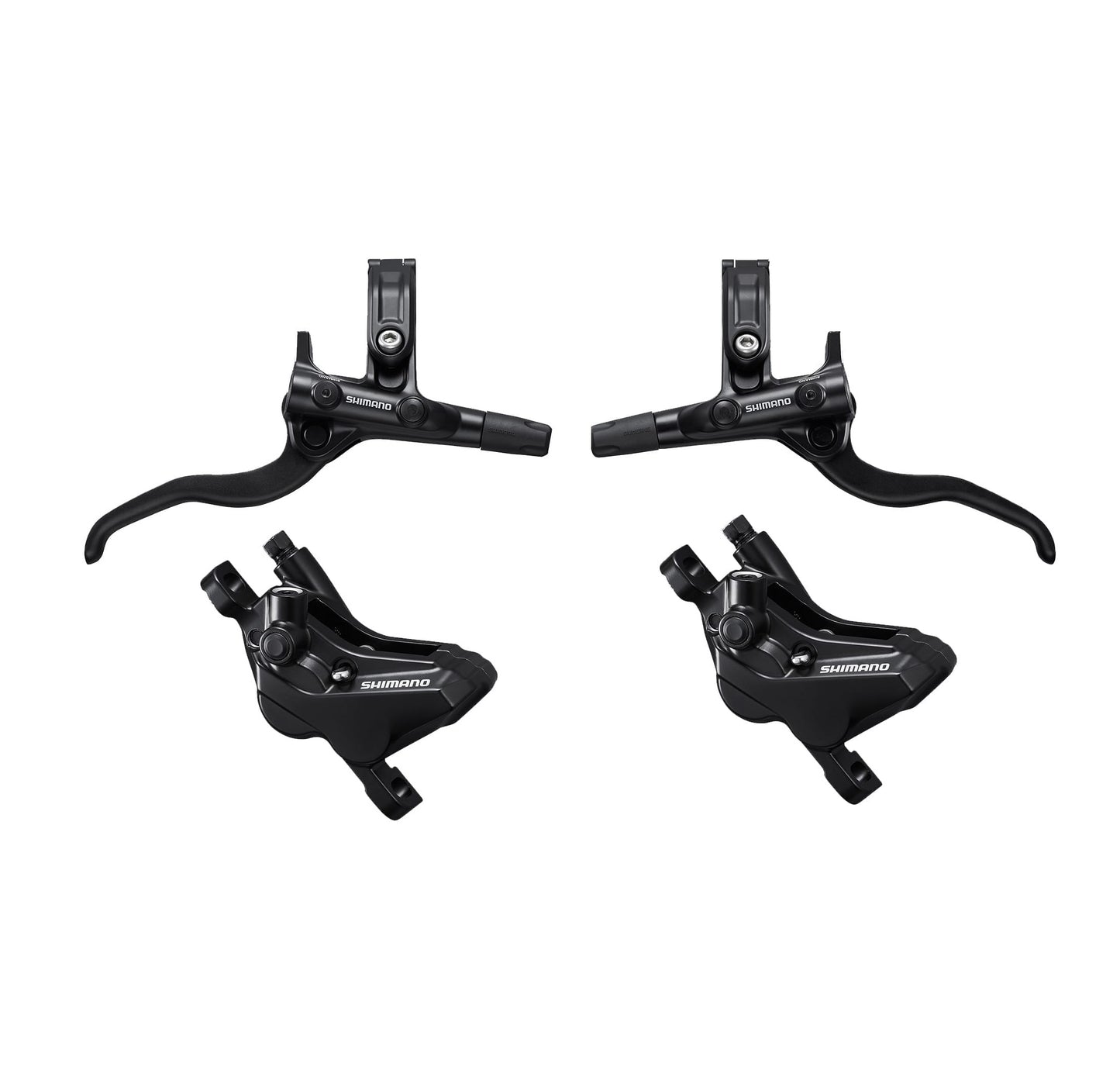

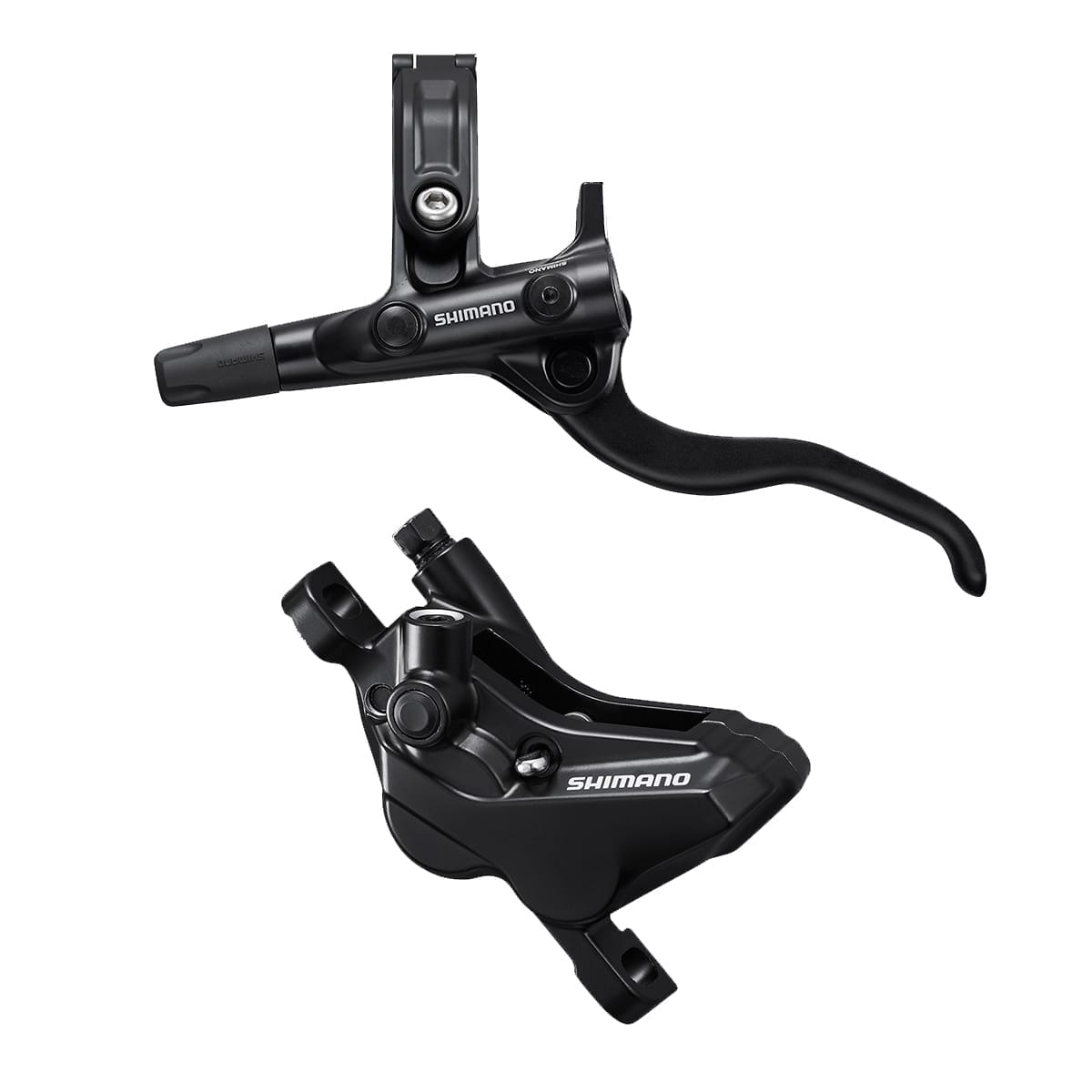

The SHIMANO MT420 Brake Set is designed to deliver consistent braking performance and reliable stopping power in all conditions. The BR-MT420 calliper, with its 4 pistons, builds confidence and control on descents, guaranteeing a precise and safe response.

The BL-M4100 brake lever allows rapid engagement and shortened travel, offering intuitive braking to keep you focused on the trail. The I-SPEC EV mounting standard offers the possibility of a fully integrated cockpit, a wider adjustment range, allowing optimal personalised setup. This combination of technology and design makes the SHIMANO MT420 an ideal choice for demanding cyclists, ensuring high-performing braking suited to various terrains and conditions.

► Manufacturer Manual

Ref: 14967713399164

Informations techniques

╝KEY FEATURES
► Quick Engagement: Intuitive braking to stay focused on the trail
► Personalised Adjustment: Wide adjustment range for optimal fit
► Consistent Performance: Reliability with a 4-piston calliper for increased control on descents
► J-KIT: The J-Kit system facilitates routing the brake hose inside the frame, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation
► I-SPEC EV: The I-SPEC EV mounting standard offers a clean cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and focus with an ergonomic design and increased rigidity for optimal control
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a quick and clean bleed thanks to a one-way oil path and a funnel-shaped tool╔

┘GENERAL
• Series: Out of Group
• Manufacturer Reference:
_Lever: BL-M4100 (x2)
_Calliper: BR-MT420 (x2)
• Weight:
_Lever: n/a
_Calliper: n/a
_Lever/Calliper/Hose Assembly: n/a
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Resin┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC EV
• Lever length: 2 Fingers
• I-SPEC EV adjustment angle: 10°
• Number of Pistons: 4
• Calliper Mount: PostMount (PM)
• Pads: D03S-RX, D02S-MX
• Recommended Brake Fluid: Shimano mineral oil
• Hoses: 1000mm (front), 1700mm (rear) - SM-BH90-SBM - Banjo Fitting
• Ø Min./max. rotors: 160mm to 220mm (combined with required adaptors)
• Recommended rotor: SM-RT30, SM-RT54, SM-RT56, SM-RT64 (not included)
• J-Kit pre-bleed: Yes┌
;
