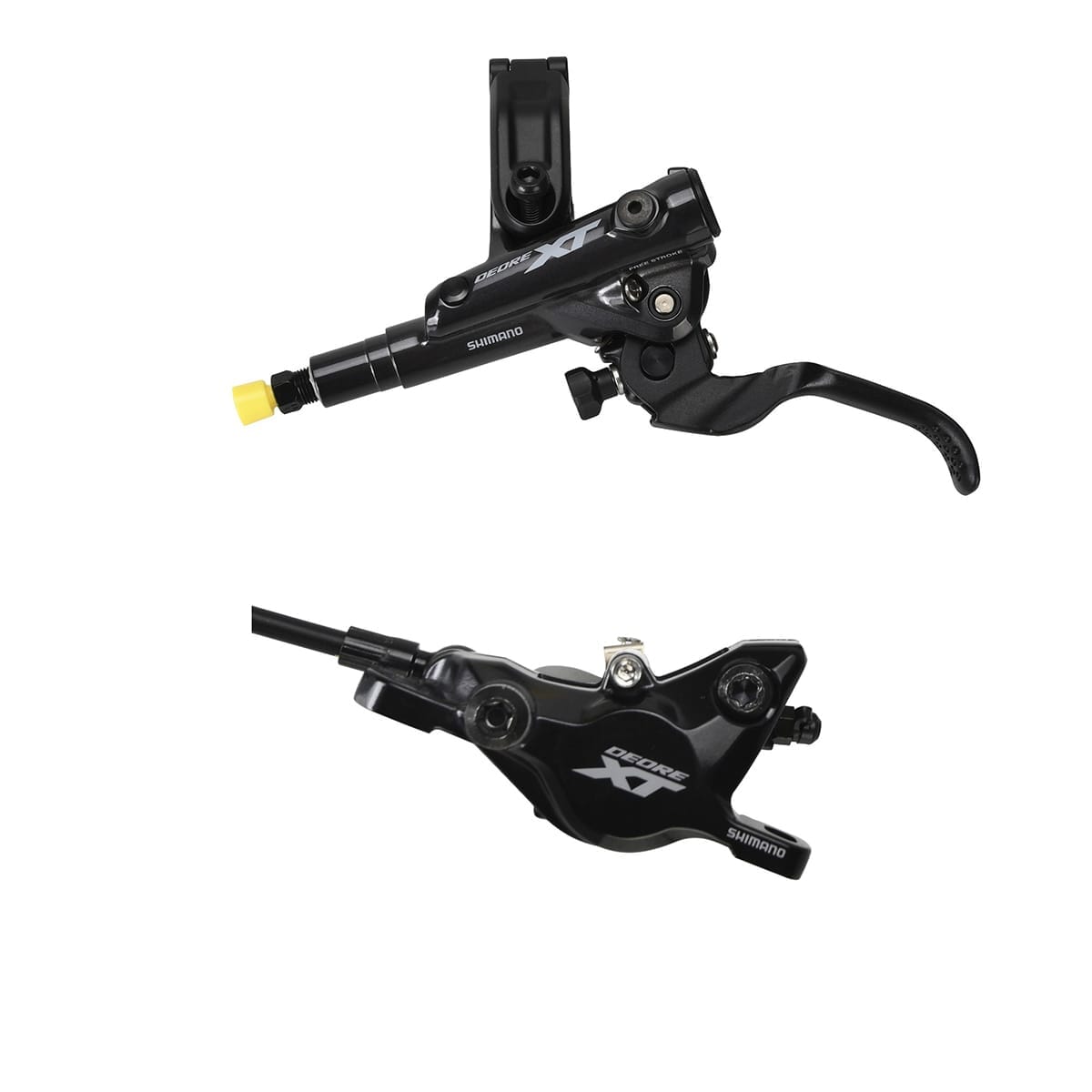

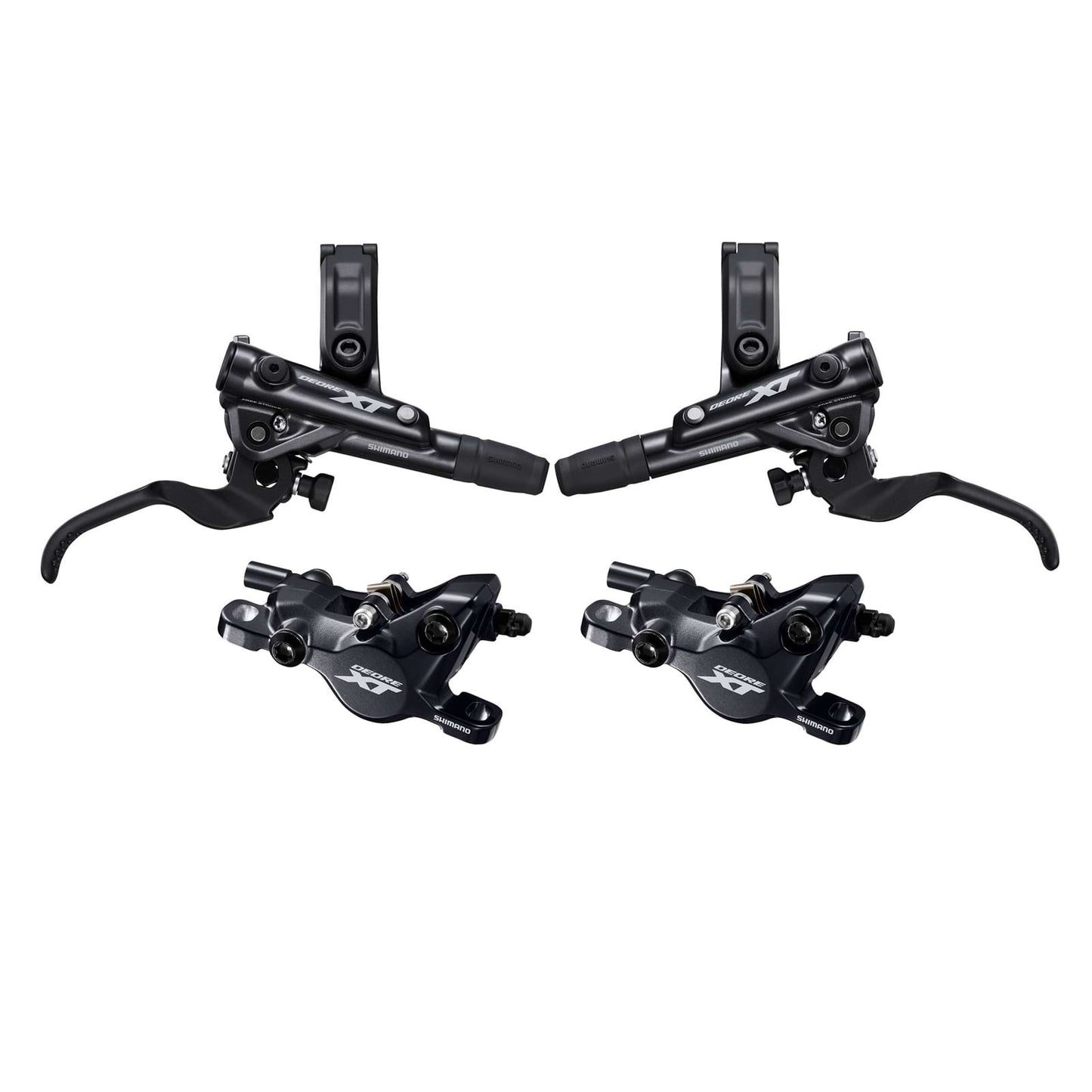

SHIMANO XT M8100 J-KIT Brake Set

The SHIMANO XT M8100 Brake Set combines lightness and stopping power, ideal from cross-country to All Mountain/Trail. The BL-M8100 lever offers intuitive modulation, allowing... Read more
1.852,00 DKK
1.935,00 DKK 1.852,00 DKK
View full details

Description

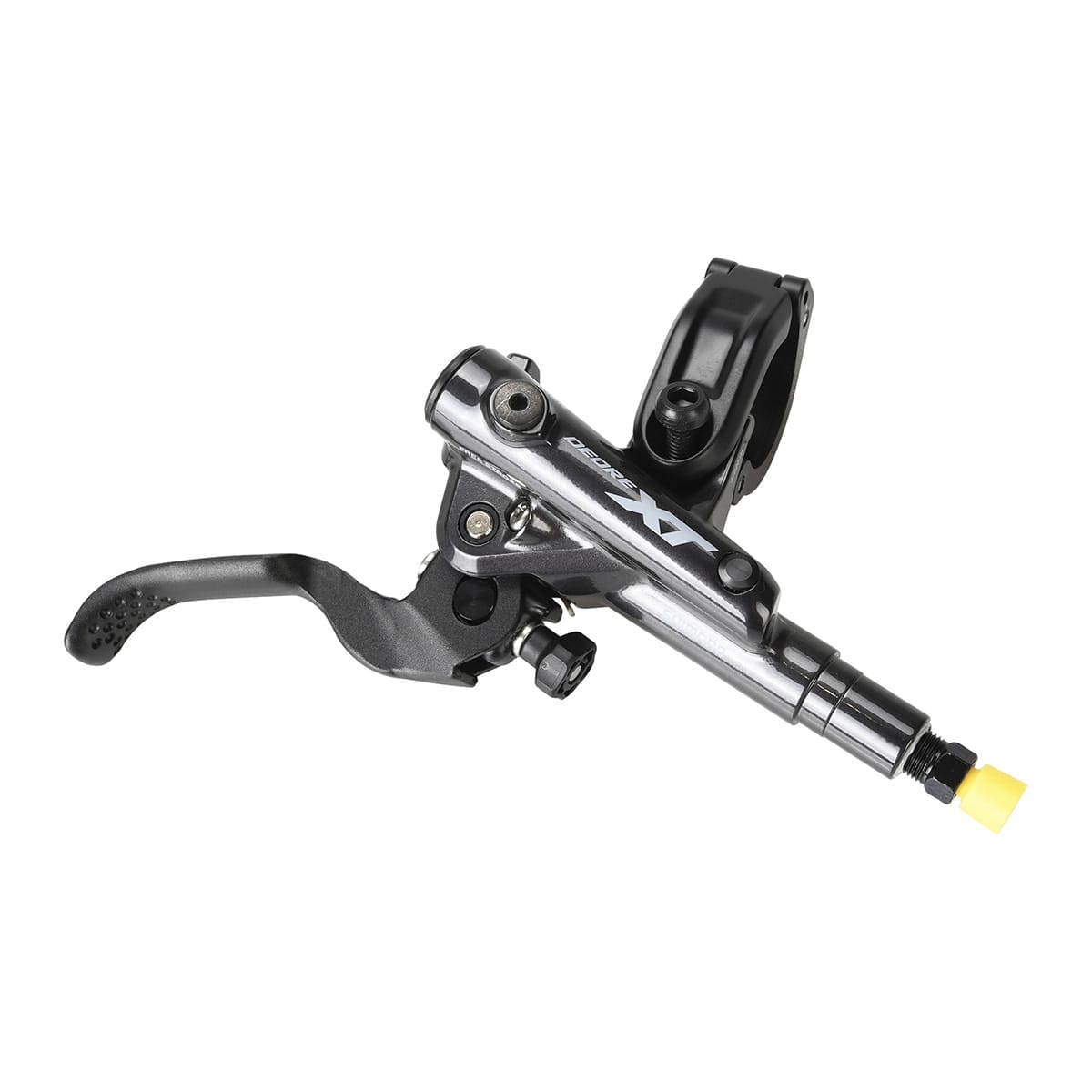

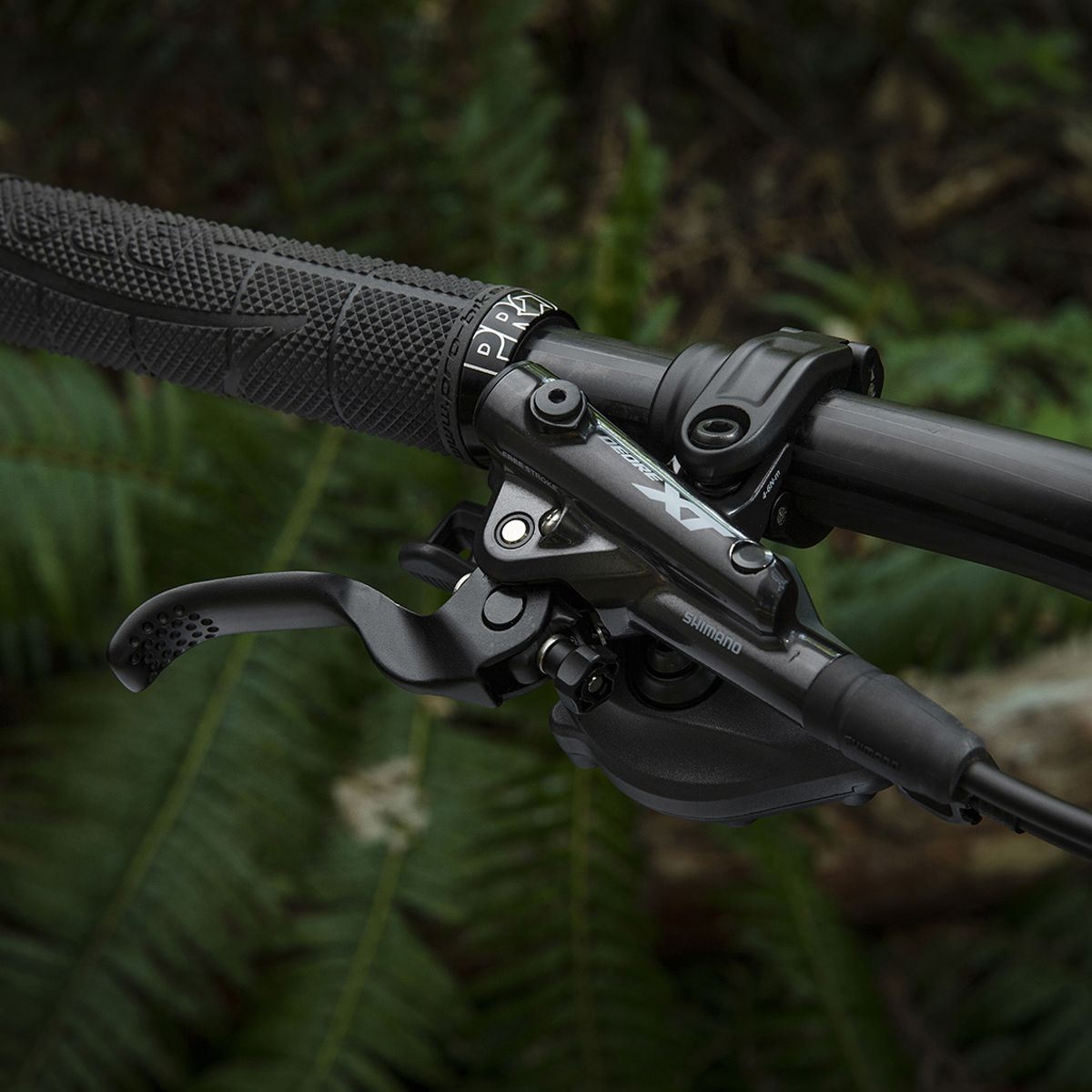

The SHIMANO XT M8100 Brake Set combines lightness and stopping power, ideal from cross-country to All Mountain/Trail. The BL-M8100 lever offers intuitive modulation, allowing cyclists to explore their limits with confidence. Its optimised position and refined ergonomics, with I-SPEC EV technology, ensure intuitive and versatile braking, suited to all terrain.

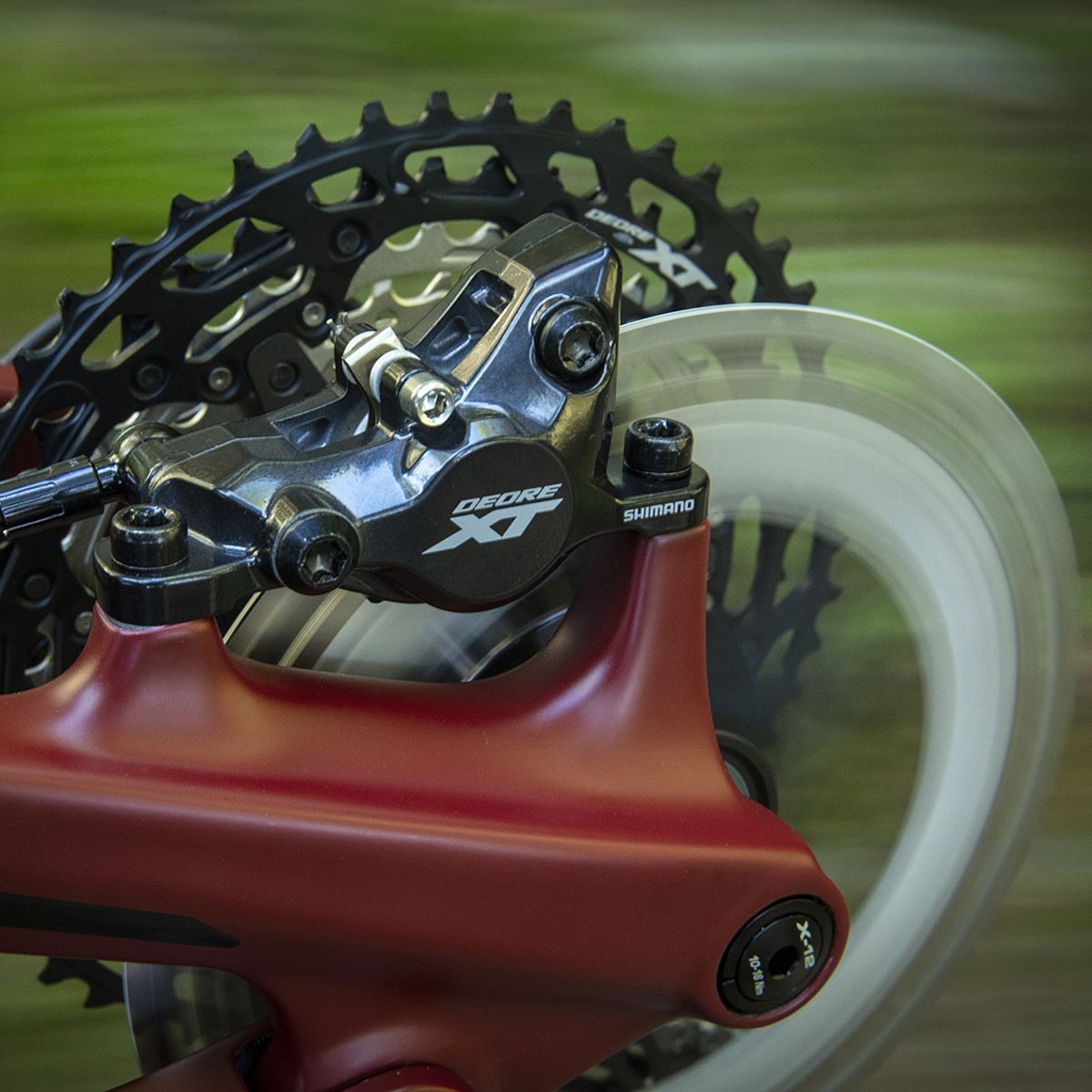

The M8100 calliper, although lightweight, guarantees reliable stopping power in all conditions. It is 10% stiffer than the M8000, even at high temperatures, with rapid brake engagement thanks to a shorter travel. Tool-free reach and travel adjustment allows complete adaptability for every user.

The rapid piston return and two-piston design offer superior modulation for better control. Installation is quick and easy thanks to the banjo-type connection and internal cable routing, making this brake set a high-performing and practical choice for demanding cyclists.

An excellent choice for versatile riding!

► Manufacturer Manual

Ref: 14967562174844

Informations techniques

╝KEY FEATURES
► Lightweight and Powerful: Suited to cross-country riding with intuitive modulation
► Intuitive Braking: Optimised lever position and refined ergonomics
► Increased Rigidity: 10% stiffer than the M8000, even at high temperature
► Easy Installation: Banjo connection and internal cable routing for quick setup.
► J-KIT: The J-Kit system makes it easier to route the brake hose inside the frame, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation
► I-SPEC EV Technology: The I-SPEC EV mounting standard offers a clean cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and focus with an ergonomic design and increased rigidity for optimal control
► Reach Adjust: The brake lever with reach adjustment allows the distance between the grip and the lever to be set, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► SERVOWAVE Action: The SERVOWAVE lever allows the pads to make quick contact with the rotor, then multiplies braking power for increased control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a quick and clean bleed thanks to a one-way oil path and a funnel-shaped tool
► FREE STROKE: Adjust the gap between the initial lever position and the pad contact point according to hand size, riding style and personal preferences╔

┘GENERAL
• Series: Deore XT
• Manufacturer Reference:
_Lever: BL-MT8100 (x2)
_Calliper: BR-MT8100 (x2)
• Weight:
_Lever: 105g
_Calliper: 121g
_Lever/Calliper/Hose Assembly: 374g for a front brake with 800mm hose
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Ceramic┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC EV
• Lever Length: 2 Fingers
• I-SPEC EV Adjustment Angle: 20°
• Number of Pistons: 2
• Calliper Mount: PostMount (PM)
• Pads: G05A-RX, G04S-MX, J05A-RF, J04C-MF
• Recommended Brake Fluid: Shimano mineral oil
• Hoses: 1000mm (front), 1700mm (rear) - SM-BH90-SBM - Banjo fitting
• Min./Max. Rotor Ø: 160mm to 220mm (combined with required adapters)
• Recommended Rotor: RT-MT800 (not included)
• J-Kit Pre-bleed: Yes┌
;
