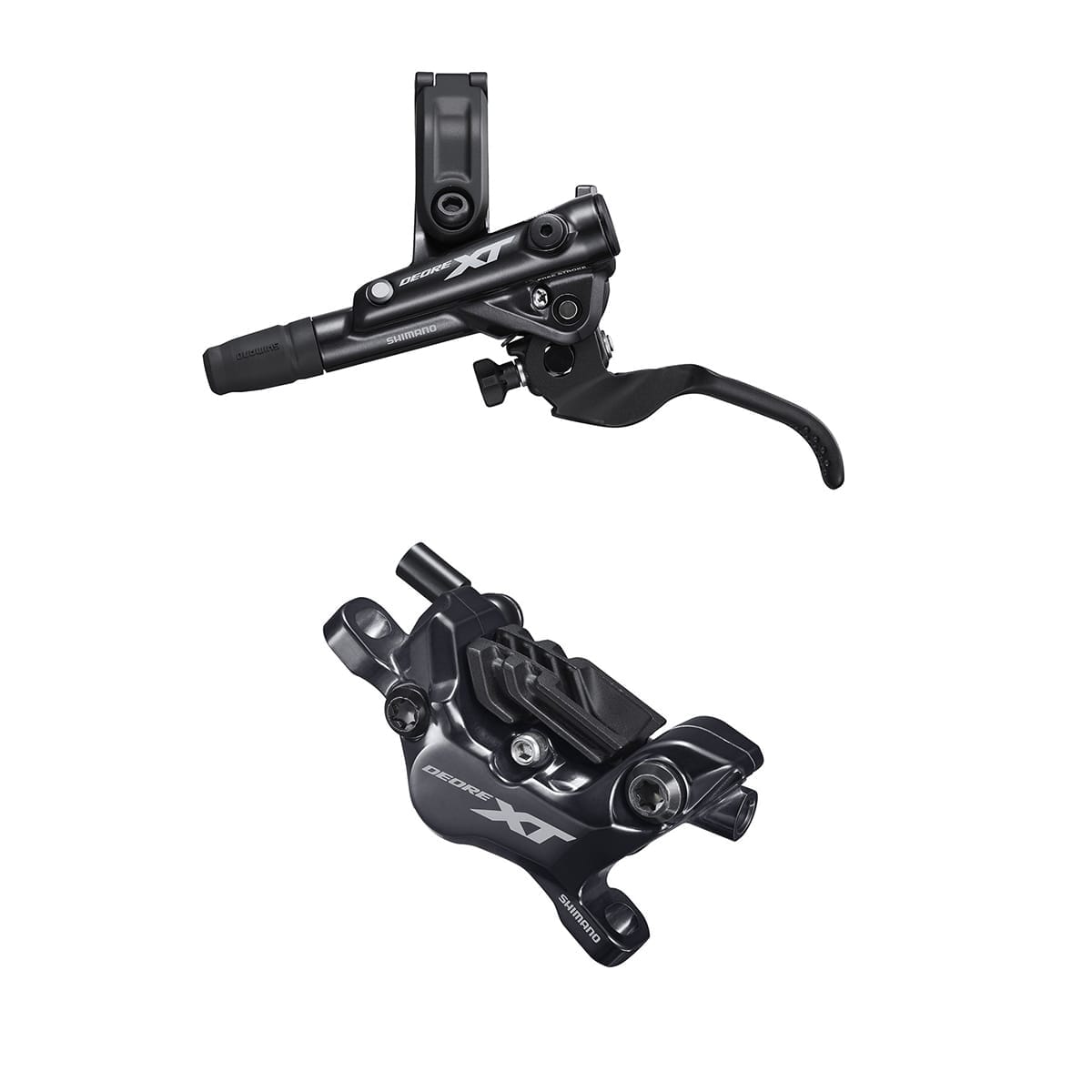

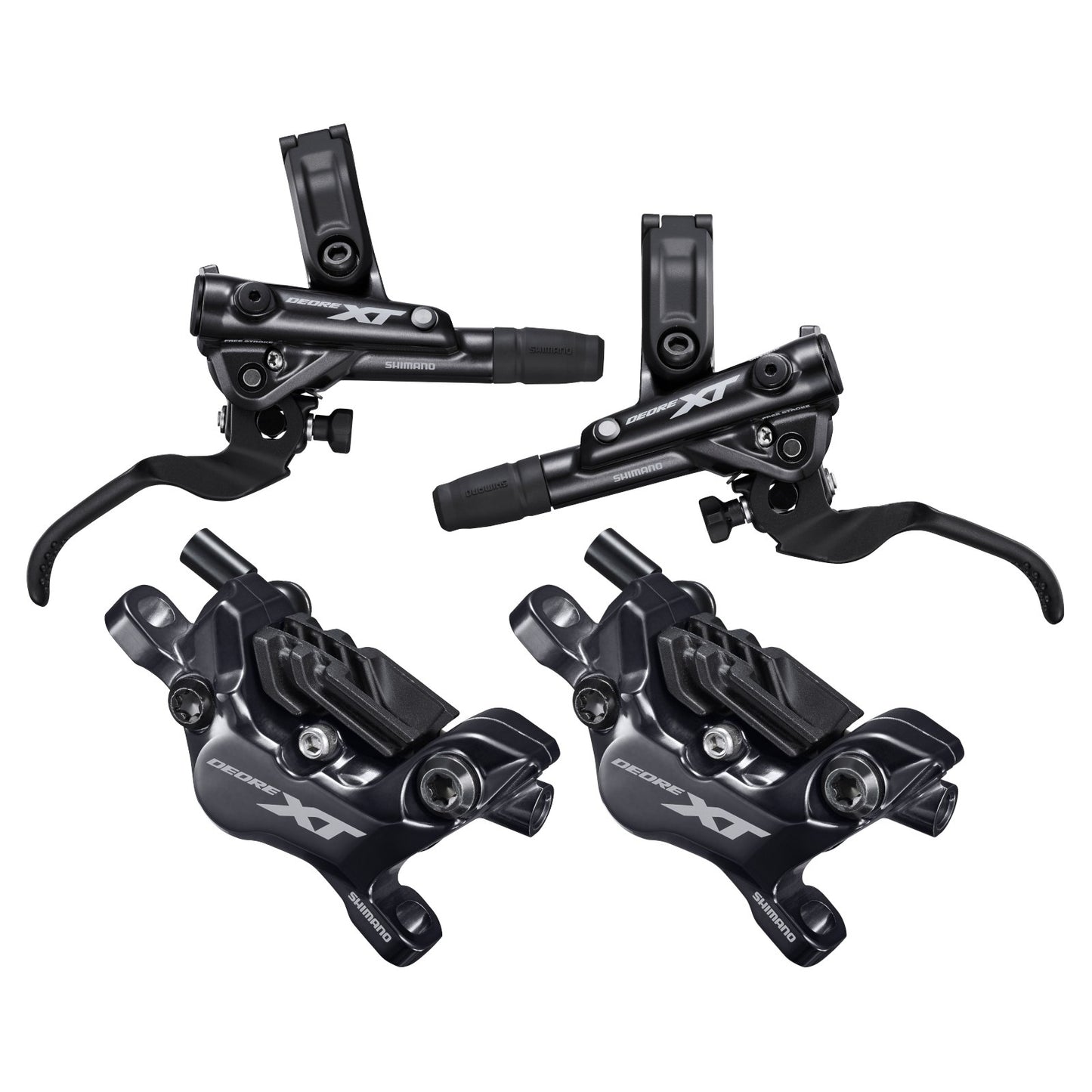

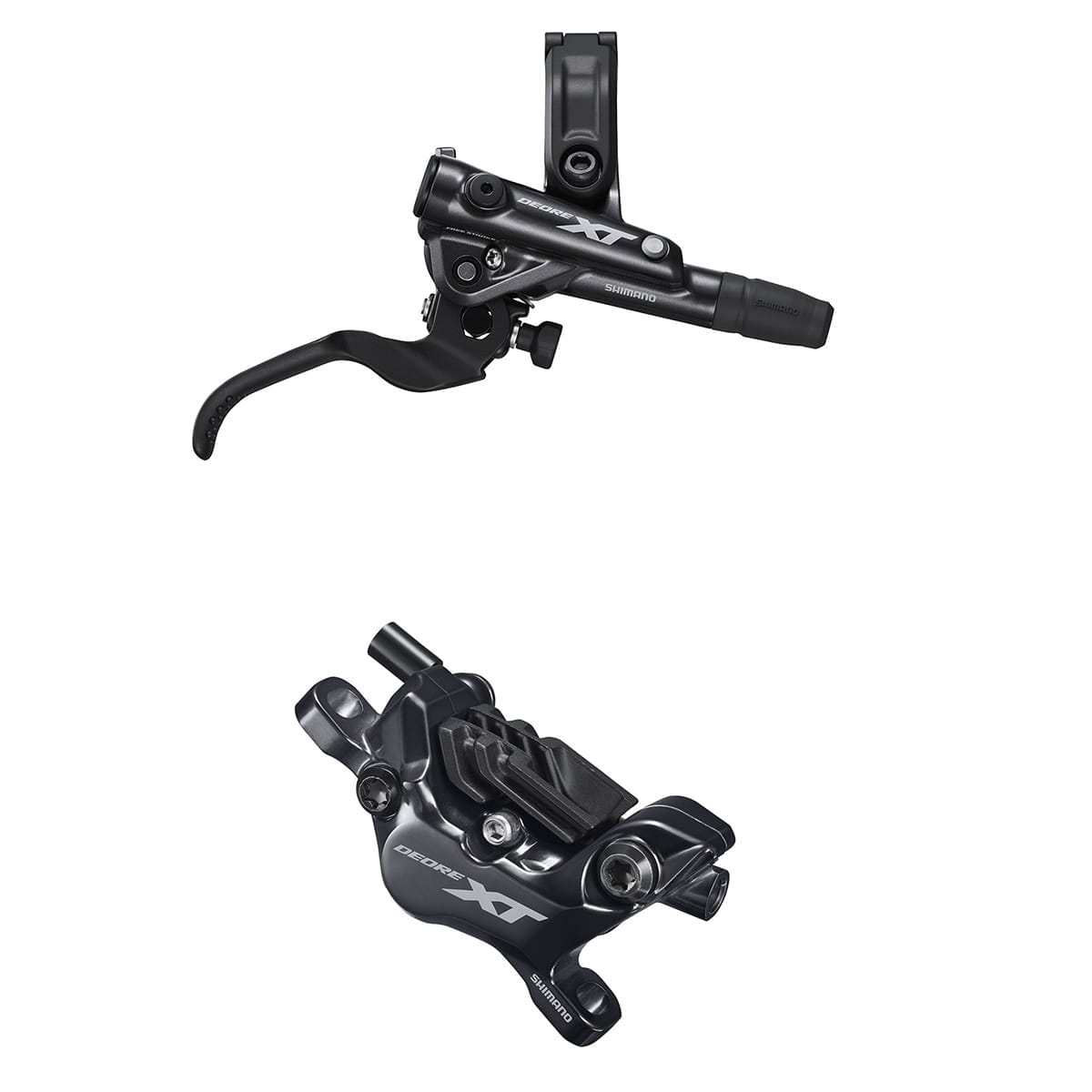

SHIMANO XT M8120 4 Piston J-KIT Brake Set with Vented Pads

The SHIMANO XT M8120 Brake Set is designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston calliper builds... Read more
2.441,00 DKK
2.609,00 DKK 2.441,00 DKK
-10%
View full details

Description

The SHIMANO XT M8120 Brake Set is designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston calliper builds confidence and control on descents, while the BL-M8100 lever, lightweight and intuitive, allows precise modulation to explore your limits with confidence.

The optimised lever pivot position and refined ergonomics, combined with I-SPEC EV technology, deliver intuitive and versatile braking. The system is 10% stiffer than the M8000, even at high temperatures, with rapid brake engagement thanks to a shorter travel.

Tool-free adjustment of reach and travel allows complete adaptability for every user. The rapid piston return and four-piston design offer superior modulation for better control. Installation is quick and easy thanks to the banjo-type connection and internal cable routing, making this brake a high-performing and practical choice for demanding cyclists.

An excellent choice for committed riding, such as Enduro or Trail !

► Manufacturer Manual

Ref: 14967541727612

Informations techniques

╝KEY FEATURES
► Lightweight and Powerful: Suited to cross-country with intuitive modulation
► Intuitive Braking: Optimised lever position and refined ergonomics
► Increased Rigidity: 10% stiffer than the M8000, even at high temperature
► Easy Installation: Banjo connection and internal cable routing for quick setup.
► J-KIT: The J-Kit system makes it easier to route the brake hose inside the frame, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation
► I-SPEC EV: The I-SPEC EV mounting standard offers a clean cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and concentration with an ergonomic design and increased rigidity for optimal control
► REACH ADJUST: The brake lever with reach adjustment allows the distance between the grip and the lever to be set, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► SERVOWAVE ACTION: The SERVOWAVE lever enables rapid pad contact with the rotor, then multiplies braking power for increased control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a quick and clean bleed thanks to a one-way oil path and a funnel-shaped tool
► FREE STROKE: Adjust the gap between the initial position of the lever and the pad contact point according to hand size, riding style and personal preferences╔

┘GENERAL
• Series: Deore XT
• Manufacturer Reference:
_Lever: BL-MT8100 (x2)
_Calliper: BR-MT8120 (x2)
• Weight:
_Lever: 105g
_Calliper: 141g
_Lever/Calliper/Hose Assembly: 394g for a front brake with 800mm hose
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Ceramic┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC EV
• Lever Length: 2 Fingers
• I-SPEC EV Adjustment Angle: 20°
• Number of Pistons: 4
• Calliper Mount: PostMount (PM)
• Pads: N03A-RF, N04C-MF, D03S-RX, D02S-MX
• Recommended Brake Fluid: Shimano Mineral Oil
• Hoses: 1000mm (front) 1700mm (rear) - SM-BH90-SBM - Banjo Connector
• Min./Max. Rotor Diameter: 160mm to 220mm (combined with required adapters)
• Recommended Rotor: RT-MT800 (not included)
• J-Kit Pre-bleed: Yes┌
;
