SHIMANO

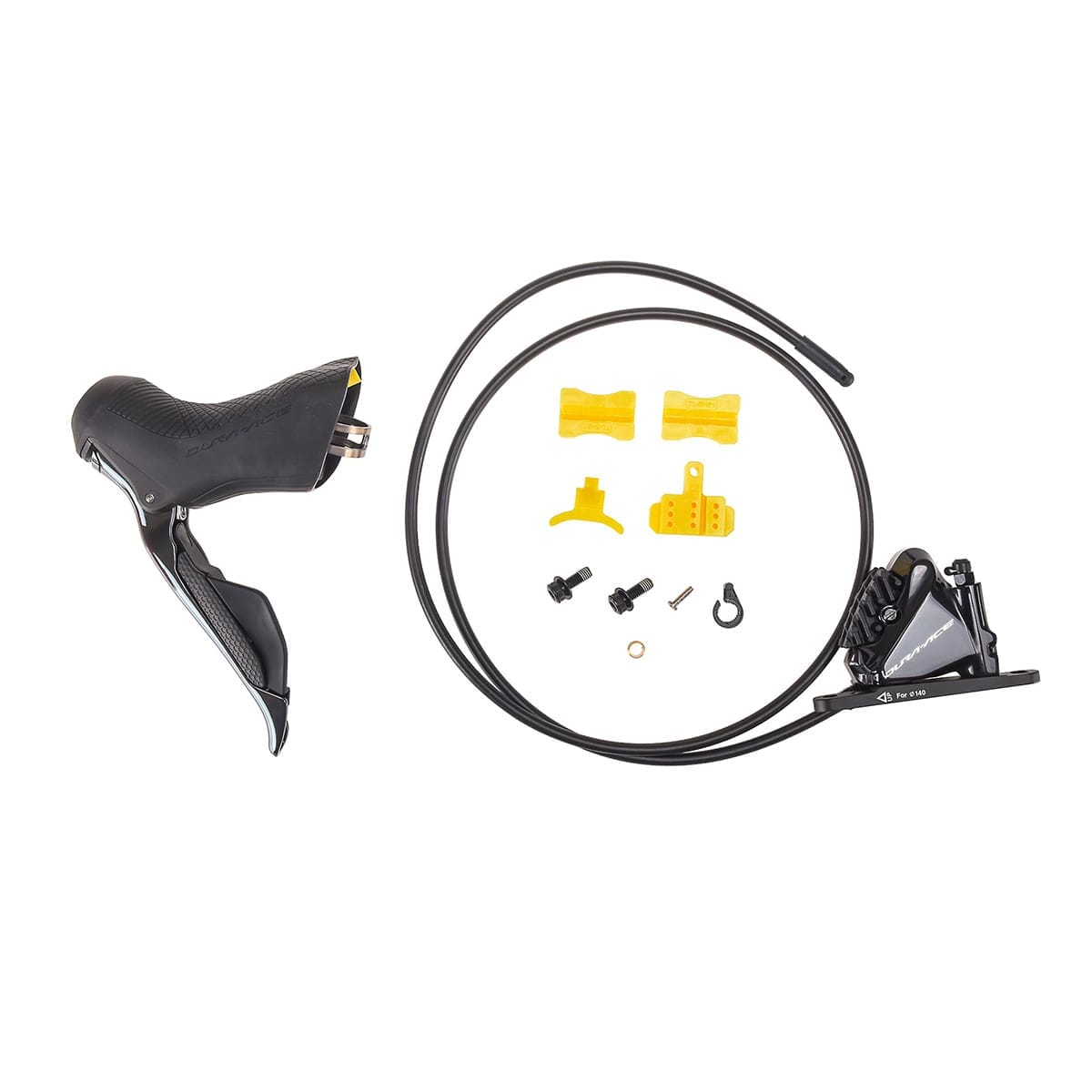

SHIMANO DURA-ACE DI2 R9170 Double Flat Mount Discless Left Lever and Front Caliper

Component Groupesets Dura-Ace Di2 9170 (electronic transmission), the SHIMANO DURA-ACE DI2 R9170 Double Flat Mount Discless Left Lever and Front Caliper has been designed to deliver... Read more
Regular price 5.239,00 DKK
Regular price Sale price 5.239,00 DKK
View full details

Description

Component Groupesets Dura-Ace Di2 9170 (electronic transmission), the SHIMANO DURA-ACE DI2 R9170 Double Flat Mount Discless Left Lever and Front Caliper has been designed to deliver top-level performance to the most demanding cyclists.

This lightweight brake offers effective speed control, even on the steepest descents! Its one-piece aluminum caliper integrates discreetly into the frame, using the standard Flat Mount fixing system, while its lever features the ergonomics that have made mechanical brake models so successful.

Ref: 7970335490214

Points forts

Braking power and control ;

Discreet "Flat Mount" integration of the caliper on the frame;

Light weight;

Easy maintenance;

Ergonomic lever.

Informations techniques

GENERAL
Series: SHIMANO Dura-Ace R9150 Series
Part Number Kit: IR9170DLF4SA10A
Weight Kit Manufacturer : Approx. 271g
Type: Left - Front - Mechanical Gears - Hydraulic Brakes

TRANSMISSION / LEVER
Part Number : ST-R8020-L
Lever Weight : 160g
Materials : Resin and steel
Collar: 23,8-24,2mm
Speeds: 2
Technology : DUAL CONTROL LEVER
Compatible derailleur : FD-R9150 / FD-R8050 / FD-9070 / FD-6870 / FD-RX815
Connectivity: SD50 port for EW-SD50
Battery: BM-DN100 external battery / BM-DN100 internal battery (not included)
Compatible application: SHIMANO E-TUBE PROJECT

BRAKING / CALIPER
Reference Caliper : BR-R9170-R
Weight Caliper Manufacturer : 111g
Material : Aluminium
Mounting: Flat Mount
Technology : J-Kit / ICE TECHNOLOGIES compatible
Pistons: x2, Ceramic
Brake fluid : Mineral
Hose connection: Straight
Hose length: 1700mm
Brake hose compatible with: SM-BH90-JK-SSR, SM-BH90-J-SSR
Brake Pads recommended : L05A-RF (supplied) / K05Ti-RX / K04Ti-MX / L04C-MF
Recommended disk: SM-RT900 (not supplied)
Recommended alternative brake caliper : BR-R9270 / BR-R9170 / BR-R8170 / BR-R7170 / BR-R7070 / BR-RS785 / BR-RX820 / BR-RX820-LE / BR-RX810 / BR-RX400 / BR-4770
