SRAM

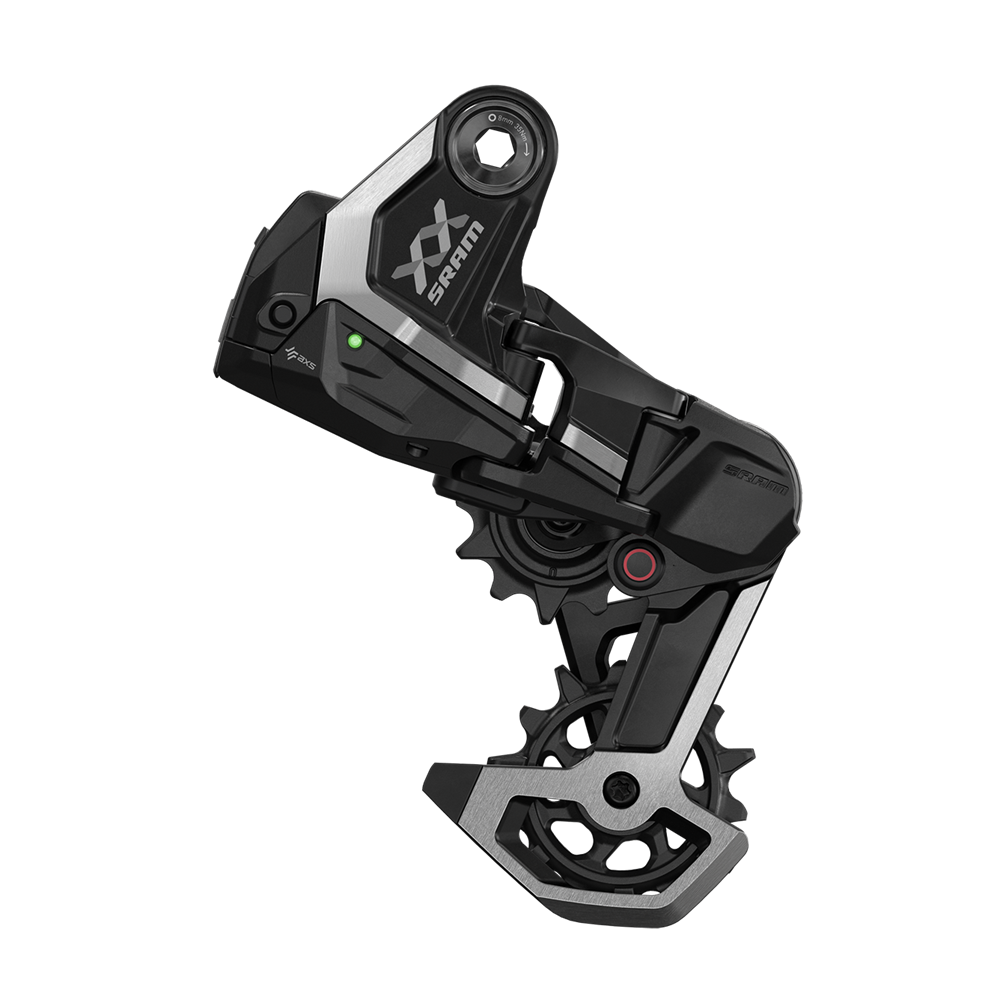

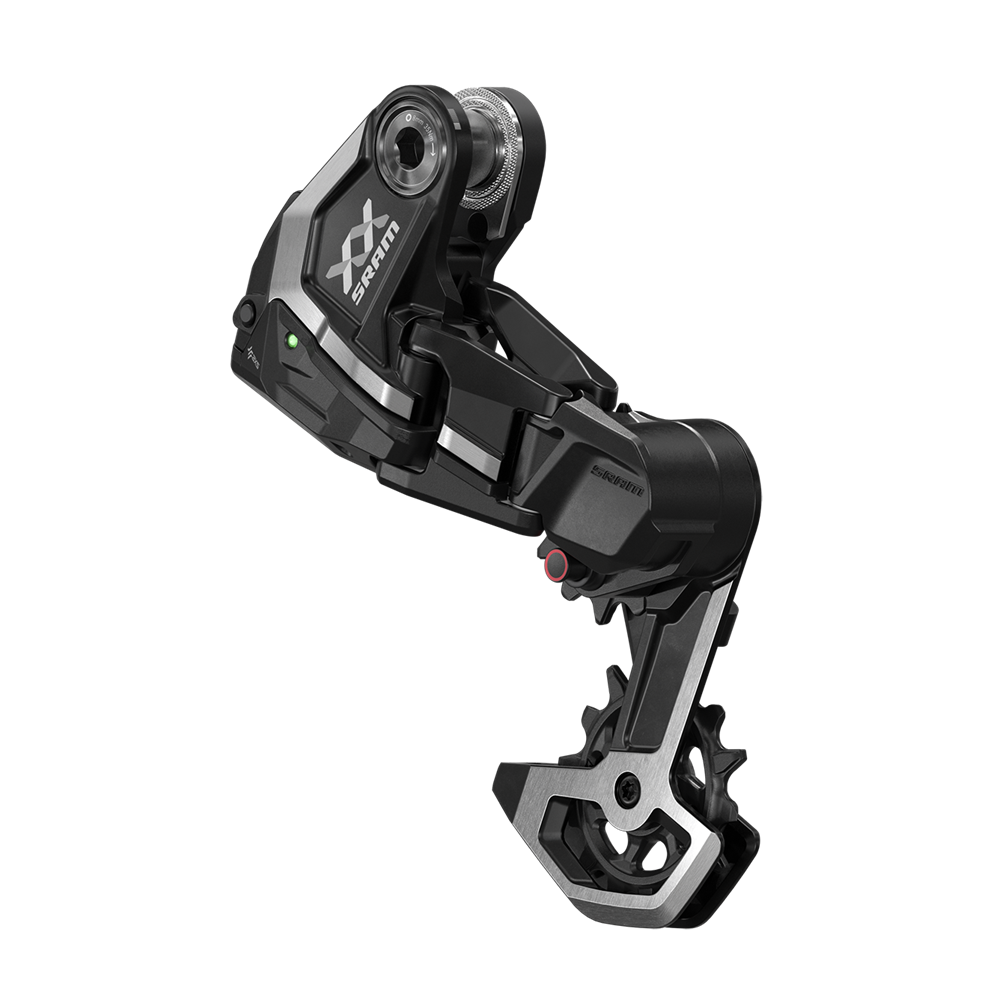

SRAM XX DH T-TYPE EAGLE AXS 7V Rear Derailleur

Réf. fabricant : 00.7518.201.000
The SRAM XX DH T-TYPE EAGLE AXS 7V Rear Derailleur is the most resistant DH derailleur on the market, designed for the most demanding... Read more
Regular price 5.892,00 DKK
Regular price Sale price 5.892,00 DKK
View full details

Description

The SRAM XX DH T-TYPE EAGLE AXS 7V Rear Derailleur is the most resistant DH derailleur on the market, designed for the most demanding courses and World Cup competitions. Its design is based on the Full Mount design, offering an ultra‑robust architecture and a fixing capable of withstanding intense impacts. Thanks to this structure, riders benefit from solid chain engagement and consistent power transfer, even on the roughest terrain.

The AXS system enables extremely precise gear changes and a clean cockpit. Combined with Cassette Mapping technology, this derailleur works in perfect harmony with the DH T‑Type cassette, guaranteeing smooth and reliable gear shifting in all conditions, from the start to the final sprint. The guard plates, the outer parallelogram link and the Inline cage are designed to be easily repaired or replaced, ensuring durability and simplified maintenance.

The type 4 damper ensures silent operation, even on the roughest terrain, while the cageless interface and exclusive compatibility with T‑Type chains enhance precision and overall resistance. The derailleur combines performance, reliability and robustness, ideal for intensive and competitive DH riding.

Ref: 15893107474812

Informations techniques

Model: RD-XX-DHE-A1
Speeds: 7S T-TYPE
Material: aluminium
Capacity: 14 teeth
Only compatible with the SRAM cassette
XX DH 10/24 teeth and T-Type 12S chains
Only compatible with frames with a
derailleur hanger-free interface (UDH)
Only compatible with POD AXS controls
Full Mount fixing, for precise gear shifting and extreme impact resistance
Installation and pairing via the standard AXS installation and pairing procedure, reliable and conventional
Replaceable protection plates and outer parallelogram segment, and repairable cage
Inline cage specially designed for DH, ultra-resistant, with a flat outer surface for easy maintenance
Type 4 cage damper, for silent operation on the roughest terrain
Weight: 426g

Compatibility with 2 chainlines:
Chainline: 56.5 mm (DH standard)
Frame compatibility: 83 mm DH bottom bracket
Chainring offset: 6 mm
Q-factor: 183 mm

Chainline: 55 mm (DUB Wide standard)
Frame compatibility: BSA 73 mm bottom bracket
Chainring offset: 3 mm
Q-factor: 174 mm

157 mm (DH) spacing frames: 83 mm bottom bracket + 56.5 mm chainline → compatible with XX DH Transmission crankset in DUB DH standard

Boost 148 mm spacing frames + 83 mm bottom bracket: 56.5 mm chainline → compatible with XX DH Transmission crankset in DUB DH standard

Boost 148 mm spacing frames + 73 mm bottom bracket: 55 mm chainline → compatible with XX DH Transmission crankset in DUB Wide standard

▲ Battery and charger not included
